What is a Pressure Mapping System?

Pressure mapping is a unique test & measurement technology and a prime example of a wide-reaching R&D tool. Top-tier companies have successfully used our systems to help solve application challenges, improve product design, and more.

  • An analysis tool that maps interface pressure and provides insight for a better understanding of surface behaviour
  • Provides key metrics, including total force, peak pressures, and centre of force
  • Clear visual representation of pressure distribution
  • Multiple graph options to plot data
  • Access real-time or recorded data
  • Components include: sensors, data acquisition electronics, and software
  • Over 200 standard sensors with different shapes, sizes, resolutions, and pressure ranges; custom sensors available
  • High speed and wireless capabilities

I-Scan System

Measure and analyse interface pressure between nearly any two surfaces for applications and industries, including automotive and semiconductors, to name a few.

TireScan System

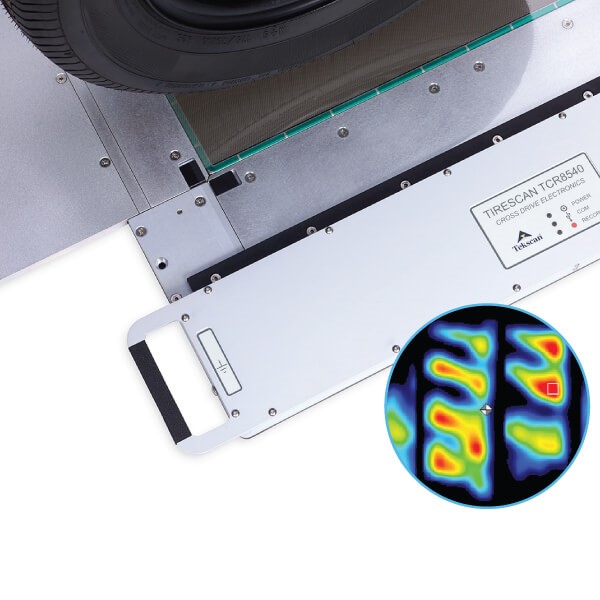

TireScan. Improve tyre designs, inside & out, with systems to analyse static or dynamic tyre footprints, as well as tyre bead seat & seal.

BPMS System

Body Pressure Measurement System. Optimise designs for bedding, cushioning, positioning, and seating.

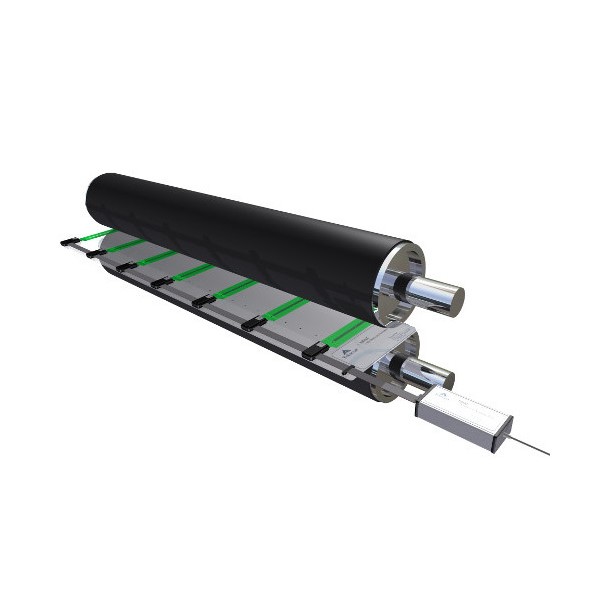

Nip Pressure

Verify nip roll uniformity and eliminate machine set-up guesswork.

Battery Systems

Optimise battery performance, lifespan, and safety with Pressure & Temperature Mapping data.

Core Technology of a Pressure Mapping System

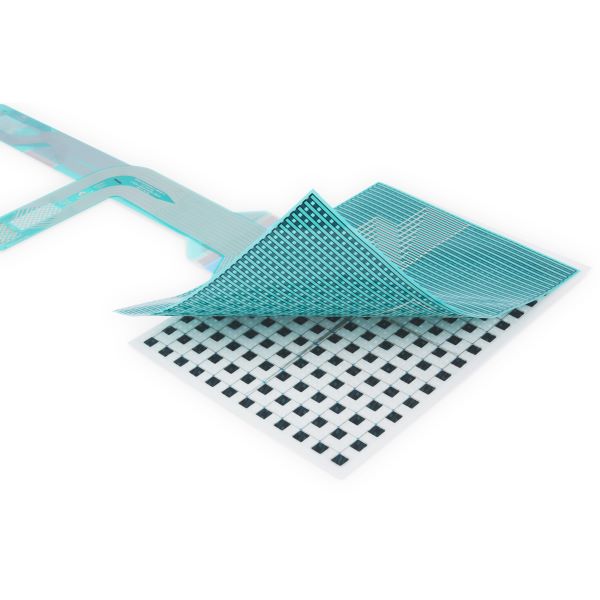

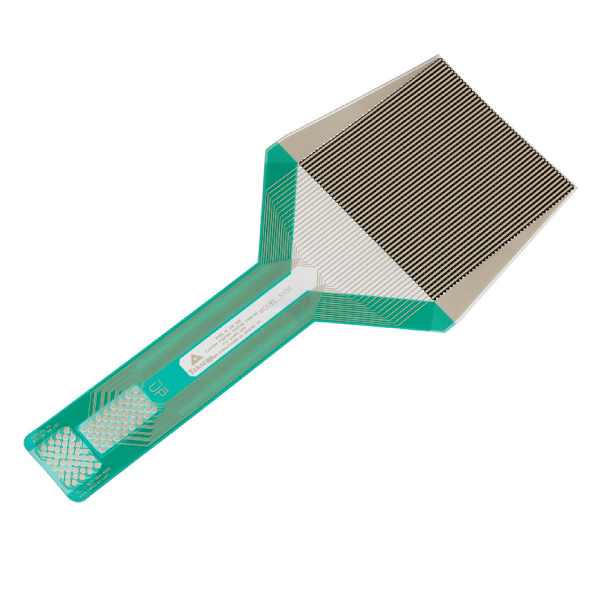

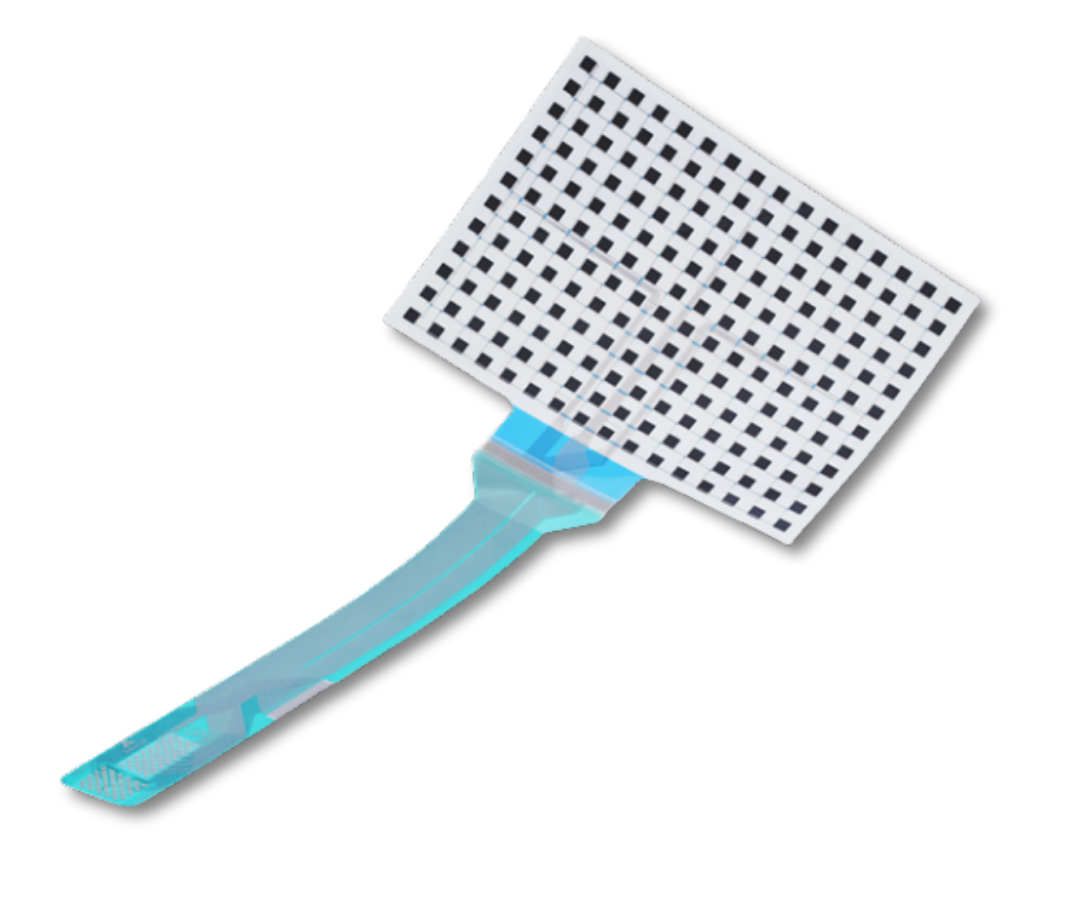

Sensors

  • Minimally invasive high-resolution sensor that is thin and flexible
  • Over 200 standard sensors with different shapes, sizes, resolutions and pressure ranges
  • Customisable to unique form factors and pressure ranges to meet specific applications

Electronics

  • Scan thousands of sensing points within each sensor
  • Data is instantly relayed to the software on your PC via a USB cable
  • High speed and wireless options available

Software

  • Software displays the pressure distribution data in multiple formats for superior analysis

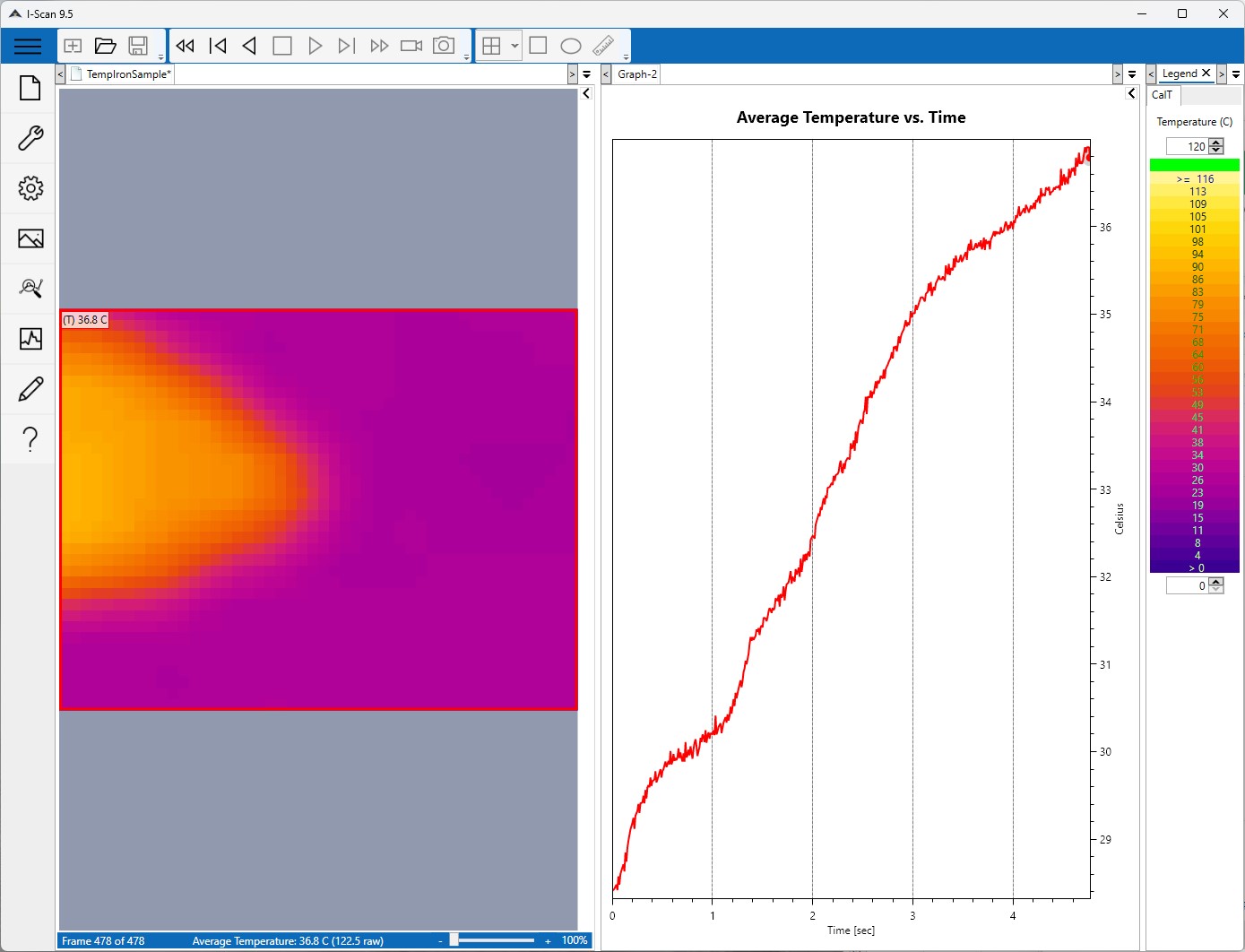

  • Real-time display of pressure sensor data in 2D & 3D
  • Display peak pressures and the centre of force
