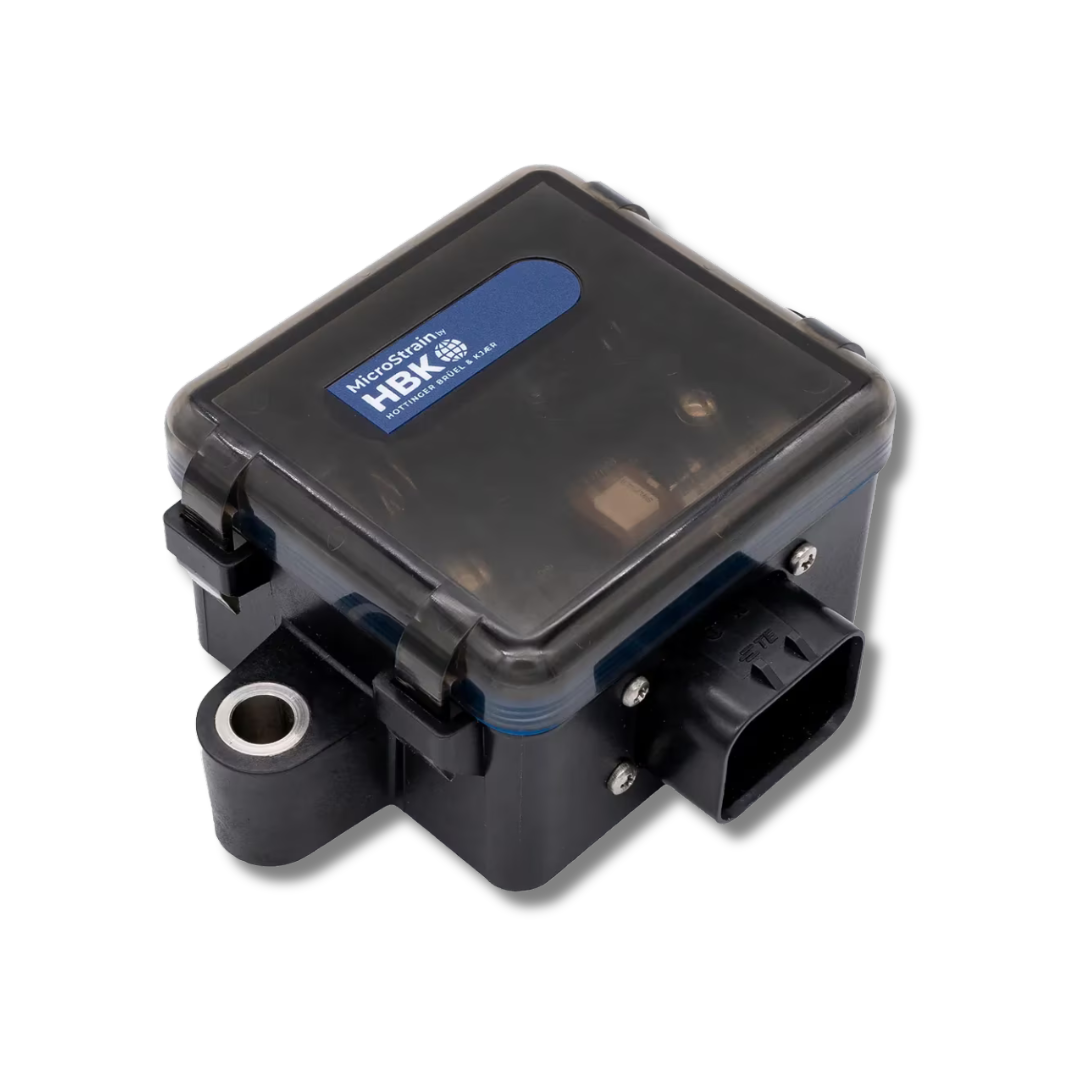

MicroStrain® by HBK wireless sensor nodes offer a streamlined solution for remote and embedded monitoring that eliminates the need to install or maintain wires.
These low-power, high-performance devices integrate multiple sensor types, including strain gauges, accelerometers, temperature sensors, and millivolt inputs.
Wireless Sensor Network Overview

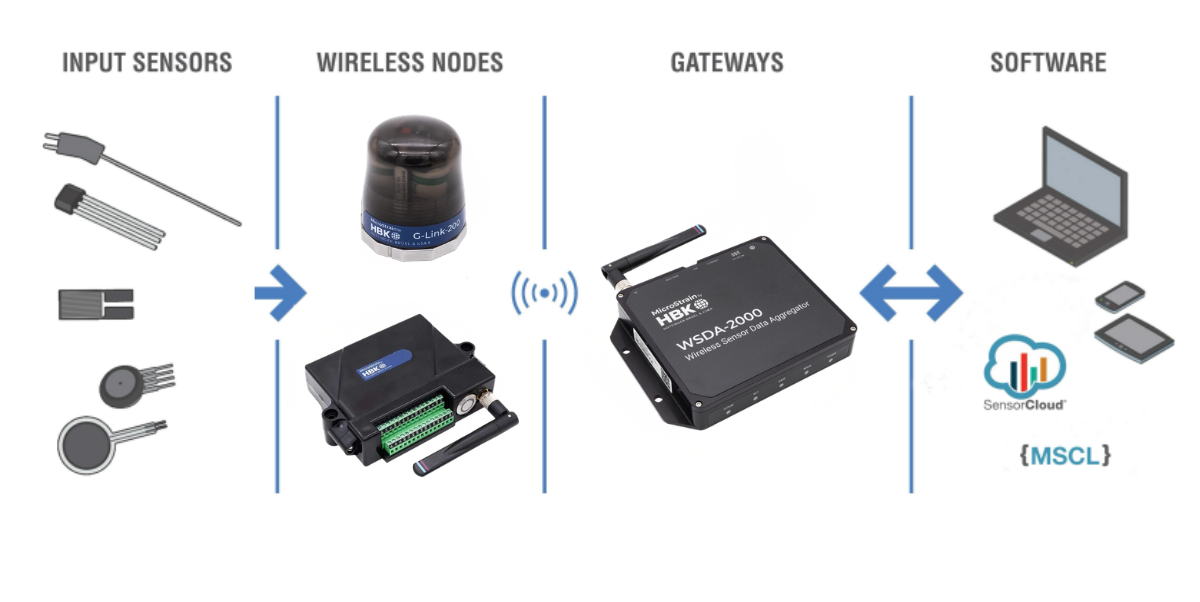

The MicroStrain by HBK Wireless Sensor Network is a high-speed, scalable, sensor data acquisition and sensor networking system. Each system consists of wireless sensor interface nodes, a data collection gateway, and full-featured user software platforms based on the MicroStrain Lossless Extended Range Synchronised (LXRS) data communications protocol. Bi-directional wireless communication between the node and gateway enables sensor data collection and configuration. Gateways can be connected locally to a host computer or remotely via local and mobile networks. Some gateways also feature analogue outputs for porting sensor data directly to stand-alone data acquisition equipment.
Wireless Sensor Range

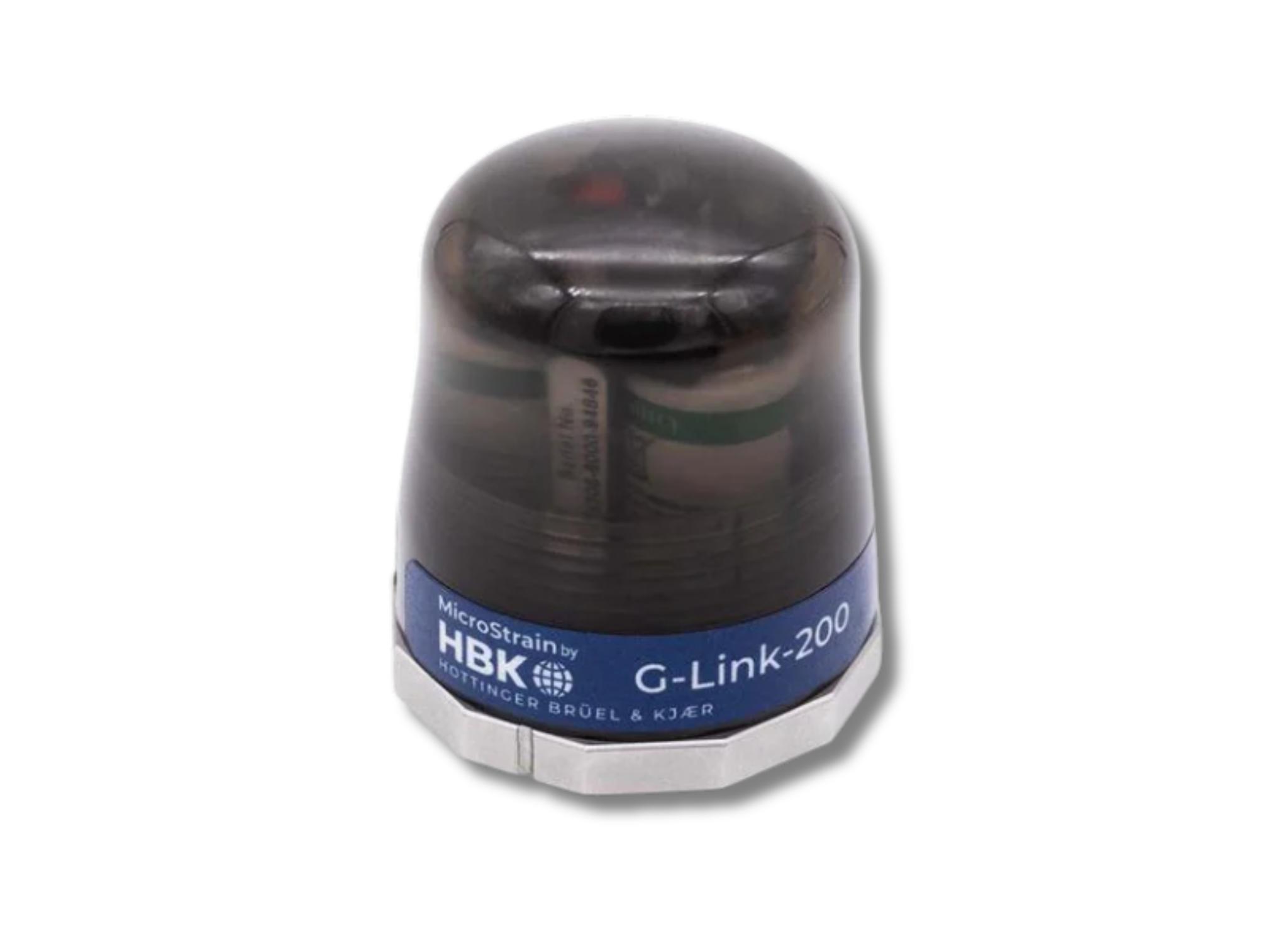

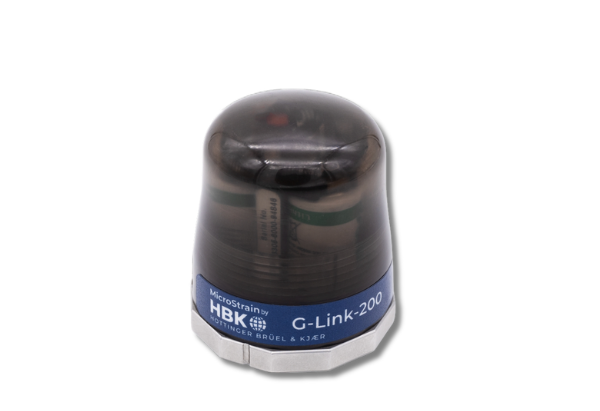

G-Link-200
The G-Link-200 is a battery-powered wireless 3-axis accelerometer with a rugged, weatherproof enclosure. The G-Link-200 provides extremely low noise waveform data, ideal for vibration, impact, motion and tilt monitoring applications.
TC-Link-200
The TC-Link-200 is a 12-channel wireless sensor used for precise measurement of thermocouples and differential output sensors. There is no calibration required. Select the desired thermocouple type, and the node will output accurate, low-noise temperature or mV data.

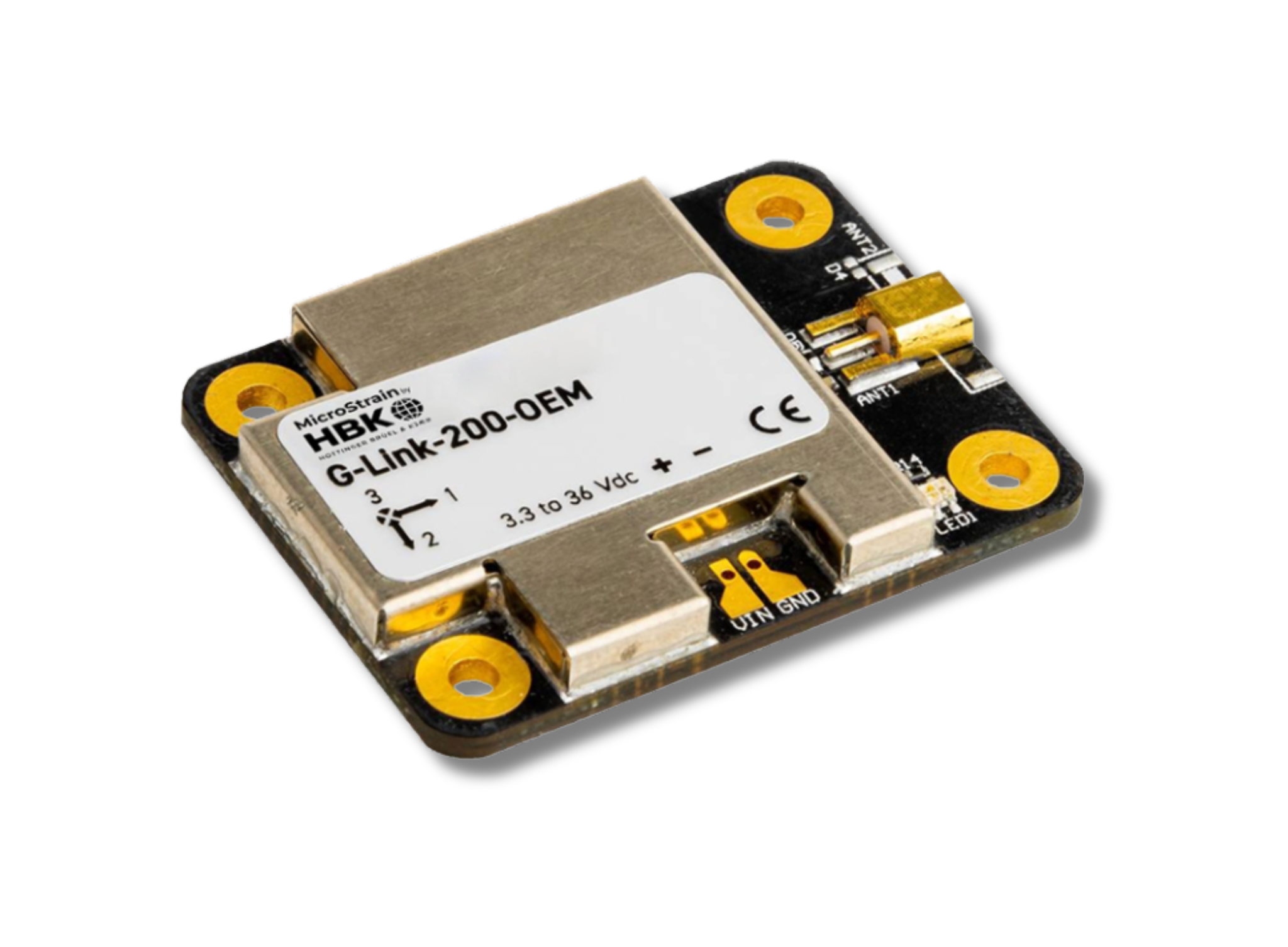

G-Link-200-OEM
The G-Link-200-OEM is a small, wireless 3-axis accelerometer ready for OEM integration. The G-Link-200-OEM provides extremely low noise waveform data, ideal for vibration, impact, motion, and tilt applications. Additionally, derived vibration parameters allow for long-term condition monitoring and predictive maintenance.
V-Link-200
The V-Link®-200 is a highly versatile wireless sensor with 8 analogue input channels. It includes onboard PGA, filtering, and high-resolution ADC for precise measurement of a large range of sensor types, including strain gauges, load cells, and pressure transducers.
RTD-Link-200
The RTD-Link-200 is a wireless sensor used for the precise measurement of RTD and thermistor temperature sensors. There is no calibration required. Select the desired sensor type, and the node will output temperature or resistance.
SG-Link-200-OEM
The SG-Link-200-OEM is a small wireless node with 2 analogue input channels, ready for OEM integration. It includes onboard PGA, filtering, and high-resolution ADC for precise measurement of a large range of sensor types, including strain gages, load cells, pressure transducers, and accelerometers.
SG-Link-200
The SG-Link-200 is a 3-channel wireless sensor with a rugged, weatherproof enclosure. It includes onboard PGA, filtering, and a high-resolution ADC for precise measurement of a large range of sensor types, including strain gages, load cells, pressure transducers, and accelerometers.
TC-Link-200-OEM
The TC-Link-200-OEM is a 1-channel wireless node used for precise measurement of temperature, mV, or resistance. No calibration is needed when used with thermocouples, RTD, or thermistors. The node will apply the appropriate linearization algorithms and CJC on board based on the sensor type.
