Thermoscale is a heat-sensitive measurement film that provides a visual map of heat distribution across contact surfaces. It changes colour based on both the temperature reached and the duration of contact, allowing you to instantly identify thermal inconsistencies, heat loss or uneven heating in industrial processes. We are proud to offer Thermoscale 100 and 200C.
Heat Distribution Measurement Film Thermoscale
Thermoscale is an epoch-making film that enables anyone to measure heat distribution easily by observing variations in density and hue.
Thermoscale 200C

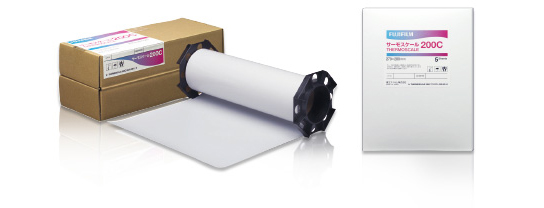

Thermoscale 200C can be used for higher temperatures (150°C to 210°C). There are two types: the roll type and the sheet type.
Thermoscale 100
Thermoscale 100 can be used for lower temperatures (80°C to 105°C).
Thermoscale uses special technology that regulates colour intensity and hue in accordance with heat value to generate a highly accurate depiction of heat distribution over a wide range of heat values. Thermoscale is ideal for applications involving analysis of heat distribution during press, roll, and laminate processes and in drying ovens.
Laminator
Printed substrates, solar panels, and protective film laminating
Press
ACF compression bonding, heat seals, Li-ion batteries, solar panels
Roll
Nip roll, calendar roll, printing roll, printer roll
Ovens
Drying oven, baking oven, vacuum film production, measuring surface heat distribution on parts
| Type | Temperature Range | Base Layer | Thickness | Product Size (Roll Type or Sheet Type) |
|---|---|---|---|---|
| Thermoscale 200C | 150°C～210°C*1 |
PEN
|
0.09mm |
Roll Type: 270mm x 5m Sheet Type: 270mm x 200mm (5 sheets) |
| Thermoscale 100 | 80°C～105°C*2 | PET | 0.09mm | ——– |
Features
Thermoscale 200C
The extent of colour change depends on the temperature of the heat source and the contact time. Even at the same temperature, a shorter contact time produces paler colours with a blue tint, and the increasing contact time makes the colours deeper with a red tint. Note that the colour change is also influenced by factors such as the type of material on the opposite side (i.e., the non-heat source side), thermal characteristics, contact pressure and air flow, so calibration should be performed under actual usage conditions.
Recommended service temperature range: 15°C–30°C Recommended service humidity: 35% RH-80% RH
* The above sample colours were produced by Fujifilm under test conditions. Calibration should be performed under actual usage conditions to ensure temperature correspondence.
Thermoscale 100
Thermoscale sheets turn black when they come in contact with a heat source. A short contact time produces pale colors. As the contact time increases (at the same temperature), the colors become deeper. Note that the color change is also influenced by factors such as the type of material on the opposite side (i.e., the non-heat source side), thermal characteristics, contact pressure and air flow, so calibration should be performed under actual usage conditions.
Recommended service temperature range: 15°C–30°C Recommended service humidity: 35% RH-80% RH
* The above sample colors were produced by Fujifilm under test conditions. Calibration should be performed under actual usage conditions to ensure temperature correspondence.
How to use Thermoscale
Cut a piece of Thermoscale film to the required shape/length and place it on or inside the equipment.
Operate the equipment in the normal manner to bring the Thermoscale sheet in direct contact with the heat source.
*The non-glossy side should be facing the heat source.
Colour patterning is produced on the Thermoscale sheet in response to heat distribution.
Remove the Thermoscale sheet and observe from the glossy side.
* The colour patterning indicates the heat distribution over the heating surface.
