We are proud to offer a wide range of strain gauge-based transducers from TML, which are mainly used for measuring in civil engineering applications or where compatibility with other strain gauge sensors is required.
Please contact us today to request more information about TML’s displacement transducers.
TML displacement transducers are used to measure various types of displacement such as displacement in structures and machinery as well as elongation and cracks in materials testing. They are widely used in applications ranging from testing and research to control. We offer a wide variety of displacement transducers to fit any type of measuring item, mounting location or displacement and these can be easily combined with data loggers or other equipment for automatic measurement of multiple points.
EXAMPLE OF DISPLACEMENT TRANSDUCER USE

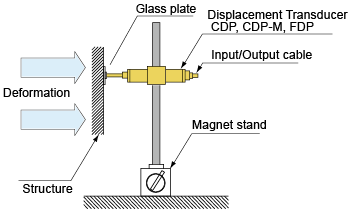

General Displacement Measurements

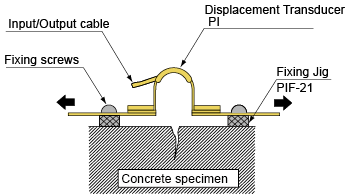

Measuring Cracks in Concrete
Measuring Displacement and Bending Strains
| SERIES | DESCRIPTION | RANGE F.S. |
|---|---|---|
| CDP | High output, stepless, spring-loaded | 5 – l00mm |
| CE | Cantilever beam | 2 – l0mm |
| UB | ASME compatible for COD measurement | 2 – 5mm |
| PI | Large span, small range | 2 – 5mm |
| DP- E | Tape measure type, spring return | 5000mm |
| DP-G |
Tape measure type displacement transducer |
500mm – 2000mm |
| KB | Inclinometer- single and double axis available |
±1° to ±5° |
| OU | Medium-range ring type | 10 – 30mm |
| EDP | Extensometer | 5mm |
| KG | Crack movement in concrete |
±2 mm/±5 mm |
| SDP | General Purpose |
50 – 300mm |
| RA | Clip-on transducer used to measure crack opening in metal |
2 – 5 mm |
| FDP |
Waterproof Displacement Transducer |
10mm – 100 mm |
