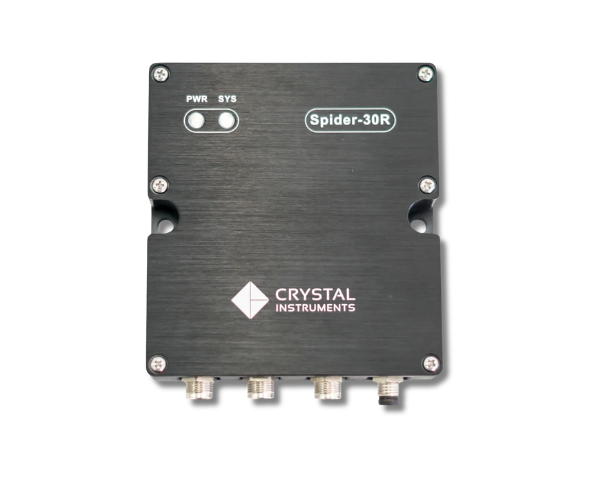

The Spider-30R is an ultra-compact, high-performance data acquisition system designed for vibration and structural measurements in challenging environments.

With a rugged aluminium enclosure, robust M-type connectors, and high dynamic range, it delivers laboratory-grade signal quality in a field-ready package.

Key Highlights:

• Ultra-Compact & Lightweight: 110 × 110 × 50 mm, 0.65 lb. Easily mounted on rigs, vehicles, or confined spaces.

• Six Input Channels: Ideal for two tri-axial IEPE sensors, supporting AC or IEPE coupling with 24-bit resolution.
• High Dynamic Range: Up to 140 dB, ensuring precision in both low- and high-amplitude signal measurements.
• Rugged Construction: Shock-tested enclosure rated for up to 50 g; optional Extreme-Shock variant up to 1000 g.

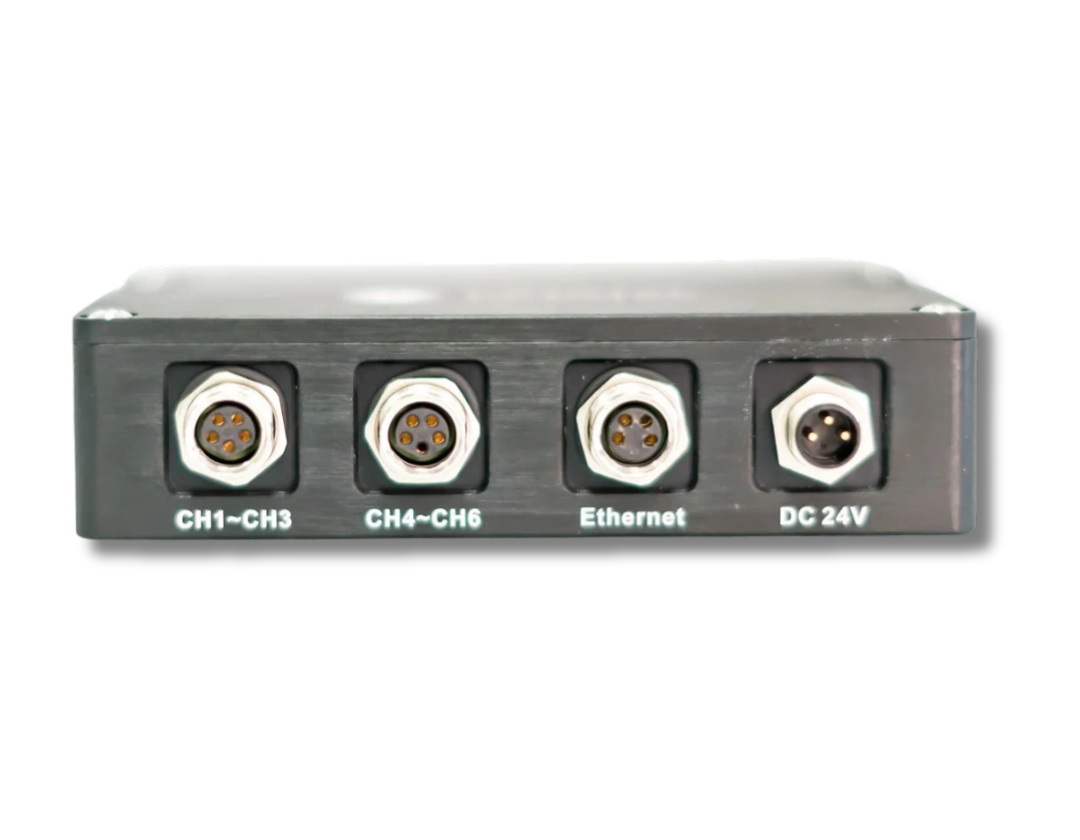

• Robust M-Type Connectors: Locking, sealed connectors for input, power, and Ethernet.
• Environmental Tolerance: Operational from −20 °C to +55 °C, resistant to sine, random, and shock vibrations.

Ruggedisation Features:

• Sealed M-Type Connectors: Ensure mechanical stability and environmental protection.

• Shock and Vibration Qualification: Tested for sine, random, and shock vibrations to industry standards.
• Optional 1000 g Shock Tolerance: Available variant for extreme mechanical environments.

Applications

• Structural vibration testing
• Aerospace and automotive field measurements
• Portable or embedded sensing systems

• Harsh-environment monitoring
• Permanent-mounted DAQ For Predictive Maintenance
