Single-Axis Laser Micrometers

Our single-axis laser micrometres measure product diameter and position from one direction, providing flexibility for:

– Clearance from obstructions, moving, or hot products

– Integration with custom measurement machines

– Specific measurement configurations or “virtual” multi-axis applications

Product Description

Our single-axis laser micrometers measure product diameter and position from a single
direction. Single-axis measurement offers the most application and installation flexibility and is ideal for:

  • Situations when clearance is needed from obstructions, moving, or hot products

  • Integration for custom measurement machine applications

  • Specific measurement configurations or “virtual” multi-axis applications

These micrometers provide accurate measurements regardless of its orientation or line
speed.

Notable Applications

Single-axis laser micrometers are used in a variety of applications, including:

  • Multi-strand measurement of magnet wire, monofilament or other multi-die extrusion

  • Convoluted and armored product measurement

  • Hot steel

  • Stranded wire and wire rope

  • Drawn wire

Accessories

  • Roller guides

  • Stands

  • Calibration kits

  • Window guards

  • Air purges

  • V-blocks

Product Model Comparison

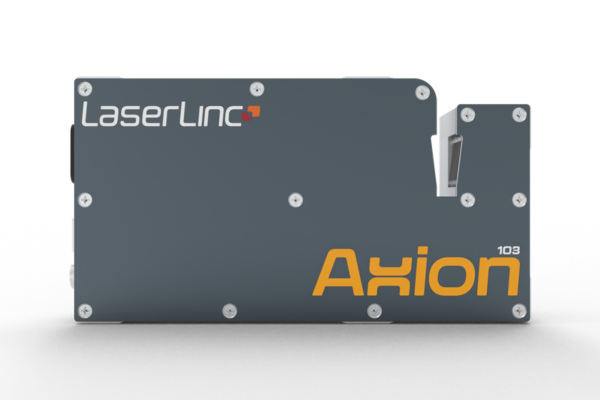

AXION 103™

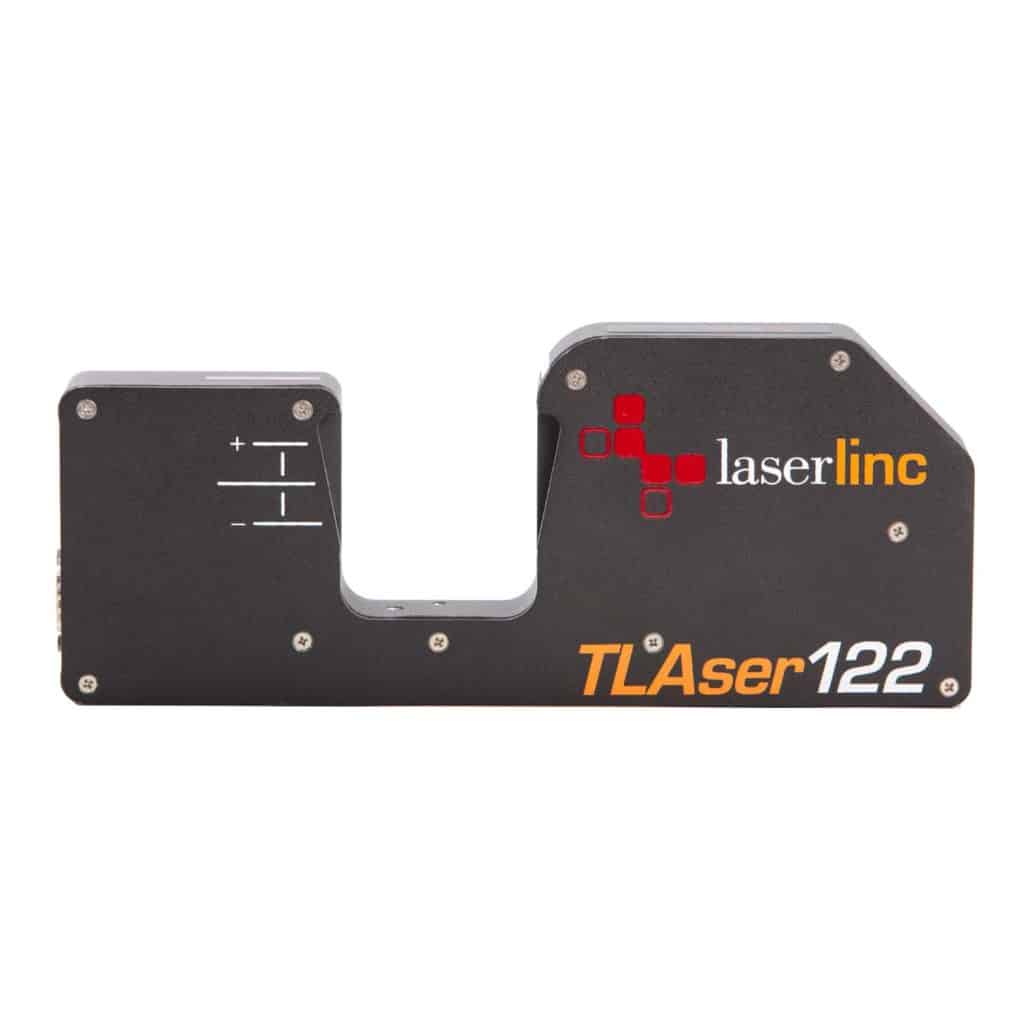

TLASER 122™

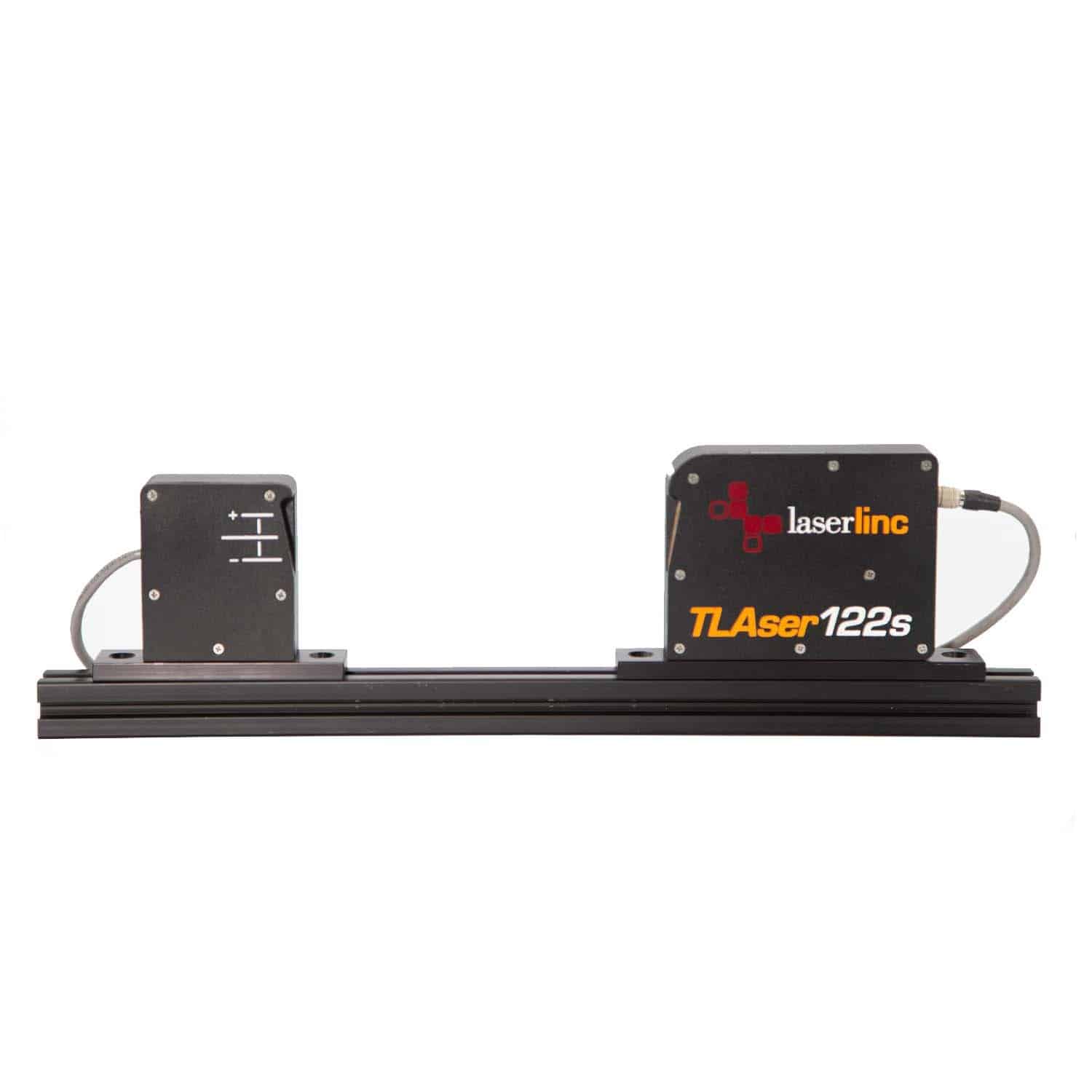

TLASER 122S™

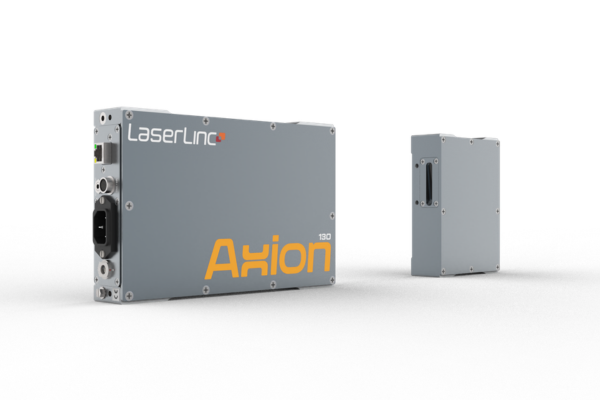

AXION 130™

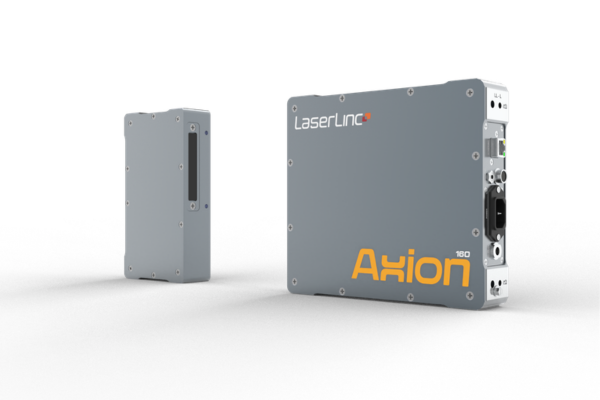

AXION 160™

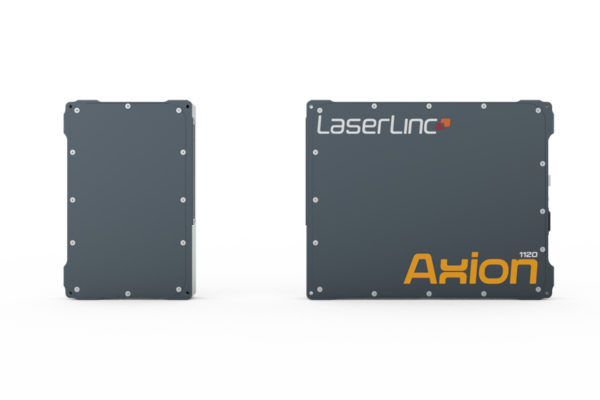

AXION 1120™

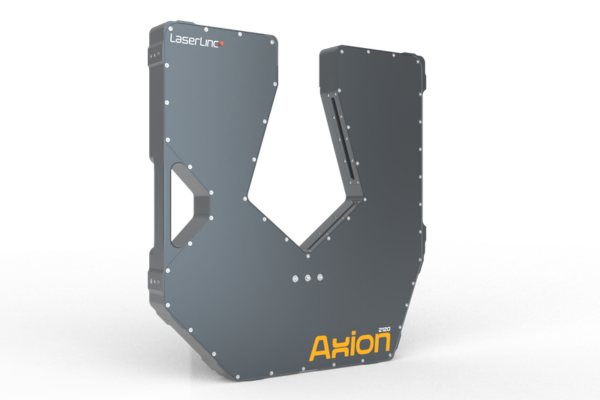

AXION 2120™
Measurement Range
0.0006˝ – 0.086˝ [0.015mm – 2.2mm]
0.0015˝ – 0.866˝ [0.038mm – 22mm]
0.003˝ – 0.866˝ [0.076mm – 22mm]
0.007˝ – 1.15˝ [0.178mm – 29.2mm]
0.010˝ – 2.3˝ [0.254mm – 58mm]
0.028˝ – 4.55˝ [0.711mm – 116mm]
0.7mm –
114mm
[0.028″ – 4.5″]
Measurements per second (Hz)¹
1200
400
400
1600
4000 (optional)
1600
4000 (optional)
1600
4000 (optional)
3200 [1600
per axis]8000 [4000
per axis](optional)
Gate Size
0.114″ [2.9mm]
0.91˝ [23.1mm]
.91˝ [23.1mm]
1.18˝ [30mm]
2.36″ [60mm]
4.72″ [120mm]
120mm
[4.72″]
Repeatability² Unaveraged
±0.00005˝ [±1.25µm]
±0.0001˝ [±2.5µm]
±0.0001˝ [±2.5µm]
±0.0004˝ [±10µm]
±0.0010˝ [±25µm]
±0.002˝ [±0.051mm]
±56µm
[±0.0022˝]
Repeatability² Two Second
±0.000001˝ [±0.025µm]
±0.000005˝ [±0.125µm]
±0.000005˝ [±0.125µm]
±0.00001″ [±0.25µm]
±0.00002˝ [±0.5µm]
±0.00004˝ [±1.0µm]
±0.00004             [±±1.0µm” ]
Positional Error³
±0.00001˝ [±.25µm]
±0.0001˝ [±2.5µm]
±0.0001˝ [±2.5µm]
±0.0001˝ [±2.5µm]
±0.0002˝ [±5µm]
±0.0004˝ [±10µm]
±0.0004˝ [±10µm]
Approx. Dimensions ( H x W x D)
4.345″ x 8.24″ x 1.862″[110mm x 209mm x 47mm]
4.2″ x 10.2″ x 1.27″ [106.7mm x 259mm x 32.3mm]
Transmitter: 4.2″ x 5.3″ x 1.25″ [107mm x 135mm x 32mm]Receiver: 3.62″ x 3″ x 1.25″ [92mm x 76.2mm x 31.8mm]
Transmitter – 5.75″ x 8.75″ x 1.52″ [146mm x 222.3mm x 38.6mm]Receiver – 5.75″ x 4″ x 1.52″ [146mm x 101.6mm x 38.6mm]
Transmitter – 7.5″ x 8.5″ x 2″ [191mm x 216mm x 51mm]Receiver – 7.5″ x 4″ x 2″ [191mm x 102mm x 51mm]
Transmitter – 10.5″ x 13″ x 1.59″ [266.7mm x 330.2mm x 40.4mm]Receiver – 10.5″ x 6.75″ x 1.59″ [266.7mm x 171.5mm x 40.4mm]
Transmitter 558.8mm x
539.7mm x
50.8mm /
[22″ x 21.13″ x
2″]
Approx. Weight
4.5 lbs [2.04kg]
3.2 lbs [1.45kg]
3.2 lbs [1.45kg]
7 lbs [3.17 kg]
9 lbs [4.08kg]
21 lbs [9.5kg]
40.5lbs [18.37kg]
Power Requirements
100-240 VAC 50/60 Hz 50 W max.
12VDC 125mA, +5VDC 75mA, –5VDC 50mA
Provided by host PC or external NetLinc
12VDC 125mA, +5VDC 75mA, –5VDC 50mA
Provided by host PC or external NetLinc
100-240 VAC 50/60 Hz 50 W max.
100-240 VAC 50/60 Hz 50 W max
100-240 VAC 50/60 Hz 50 W max.
100-240 VAC 50/60 Hz 50 W max.
Cabling
Ethernet Cat 5 or higher rating
Standard lengths: 5, 10, 25, 50 , 75, and 100 feet [1.5, 3, 7.6, 15.2, 22.9, and 30.5 m]
Custom lengths, connectors, cable construction, etc., quoted on request
Standard lengths: 5, 10, 25, 50 , 75, and 100 feet [1.5, 3, 7.6, 15.2, 22.9, and 30.5 m]
Custom lengths, connectors, cable construction, etc., quoted on request
Ethernet Cat 5 or higher rating
Ethernet Cat 5 or higher rating
Ethernet Cat 5 or higher rating
Ethernet Cat 5 or higher rating
