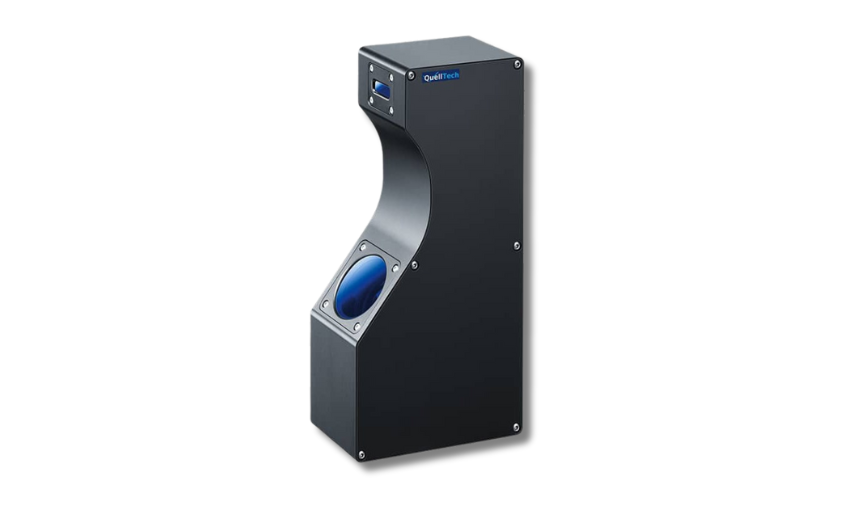

Q6 Laser Scanner for 2D and 3D Measurements

The Q6 laser scanner series is a powerful solution for industrial measurement tasks in medium and large measurement ranges, making it ideal for inline dimension inspection. The Q6 laser scanner has proven itself in demanding applications that require the highest precision, process stability, and fast processing speeds.

REQUEST A QUOTEREQUEST A QUOTE

CONTACT USCONTACT US

Advantages of Q6 Laser Scanners

The Q6 laser scanners excel in demanding industrial measurement tasks, offering high resolution, accuracy, and a scan rate of up to 24,000 Hz. They have optical power levels from 1 mW to 160 mW and can be adapted to various surface types. Available laser wavelengths include blue (405 nm or 450 nm) and red (650 nm). They provide a profile speed of up to 20,000 profiles/s, measuring X from 45 to 1000 mm and Z from 15 to 800 mm.

The Q6 Laser Scanners: A Premium Solution for Precise and Efficient Measurements in Demanding Industrial Applications

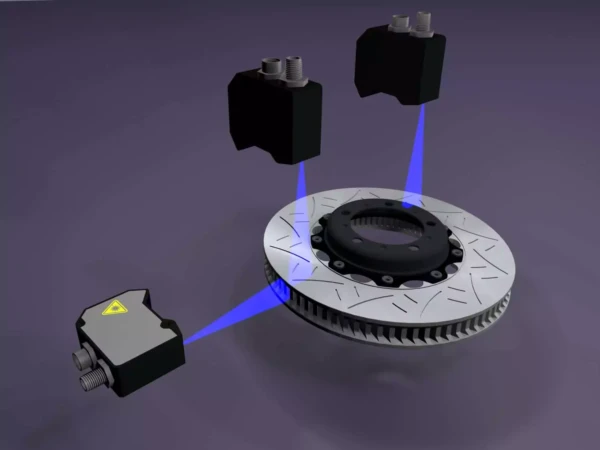

Maximum Flexibility through Parallel Operation: Support for the master-slave mode enables multiple scanners to operate in parallel. This significantly enhances flexibility and efficiency, especially in complex measurement processes.

Reliable Measurements on Difficult Surfaces: Thanks to advanced algorithms, the Q6 laser scanners can perform precise measurements even on highly reflective or glossy surfaces.

Outstanding Precision: With a resolution of up to 0.24µm, the Q6 laser scanners provide exceptionally accurate measurement results, even for the most challenging measurement tasks.

Increased Efficiency Through Multi-Scanner Operation: The parallel use of multiple scanners in master-slave modes improves measurement speed and increases productivity while maintaining high precision.

Versatile Customisation For Maximum Flexibility: Special exposure modes and multiple trigger options (including two trigger inputs and an RS422 encoder input) allow for precise measurement of objects with widely varying light reflectivity.

Robust Design For Demanding Environments: The durable housing of the Q6 laser scanners meets IP65 protection standards, making them particularly suitable for use in harsh industrial environments.

User-Friendly Operation: The ability to set multiple measurement windows directly on the chip and automatically track them simplifies operation significantly. Additionally, user-specific configurations can be stored directly in the scanner, making setup and usage even more convenient.

Factory-Calibrated Precision: The Q6 laser scanners provide pre-calibrated measurement values straight from the factory, guaranteeing immediate accuracy and ease of commissioning.

Seamless System Integration: With GenICam and GigEVision interfaces, the scanners can be easily integrated into existing systems, ensuring efficient and straightforward commissioning and data exchange.
