TML Pressure Transducers electrically detect the gauge pressure of fluids like oil and water or gases like air. Our pressure transducers have sensing elements that use TML strain gauges made exclusively for transducers, and they can be used for consistent, highly reliable measurements over a long period of time in harsh environmental conditions or special civil engineering applications.
| Series | Description | Range F.S. |
|---|---|---|

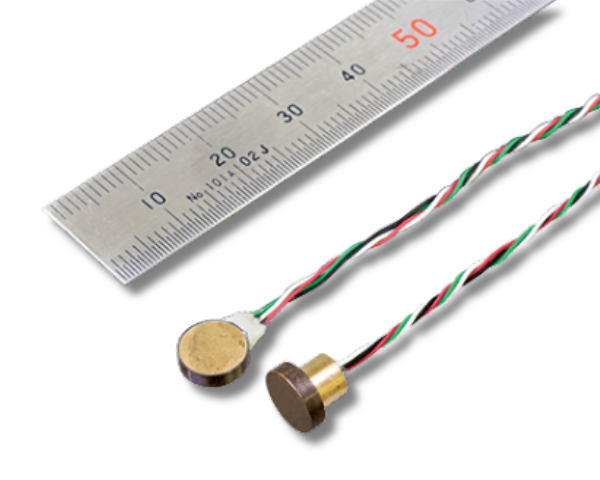

| PDA-PB / PDB-PB | Miniature type with 7.6mm in diameter and 2mm in thickness | 50kPa to 3MPa |
| PDC-PA / PDD-PA | Ultra-compact pressure gauge (diameter 5.8 mm) | 100kPa to 300kPa |
| PWFD-PB | Bolt-shaped flush diaphragm type pressure transducer | 2 to 20 MPa |
| PWFE-PA | Bolt-shaped flush diaphragm type pressure transducer | 2 to 20MPa |
| PWFA-PA | Small high-temperature pressure transducer with built-in amplifier | 2 to 20MPa |
| PWF-PB | Flush diaphragm type pressure transducer | 1 to 50MPa |
| PWFC-PB | Flush diaphragm type transducer | 2 to 50MPa |
| PW-PA | Pressure Transducer | 100kPa to 50MPa |
| PWH-PA | High-capacity pressure transducer | 70 to 200MPa |
| PW-PAH | High temperature pressure transducer | 2 to 50MPa |
