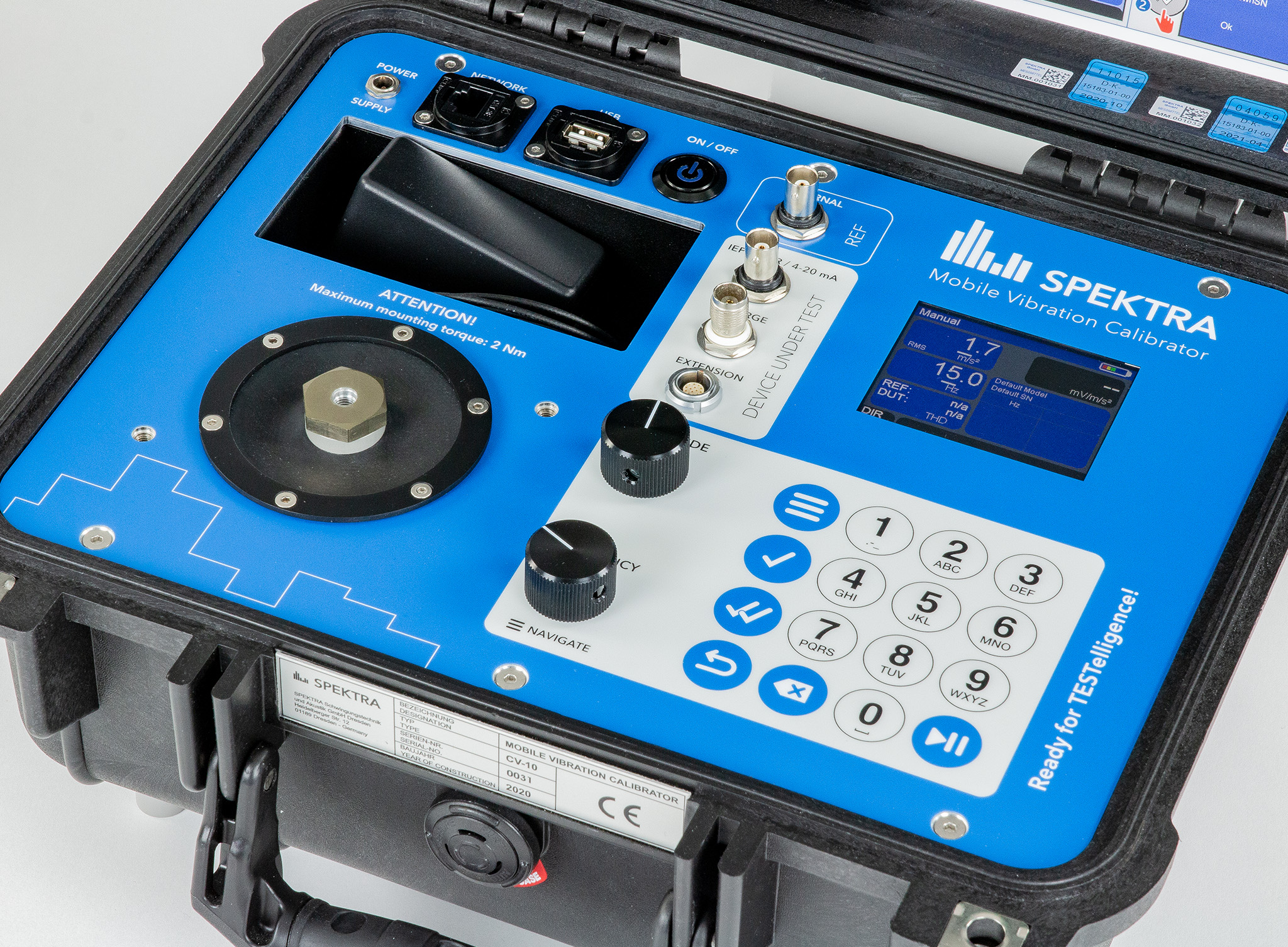

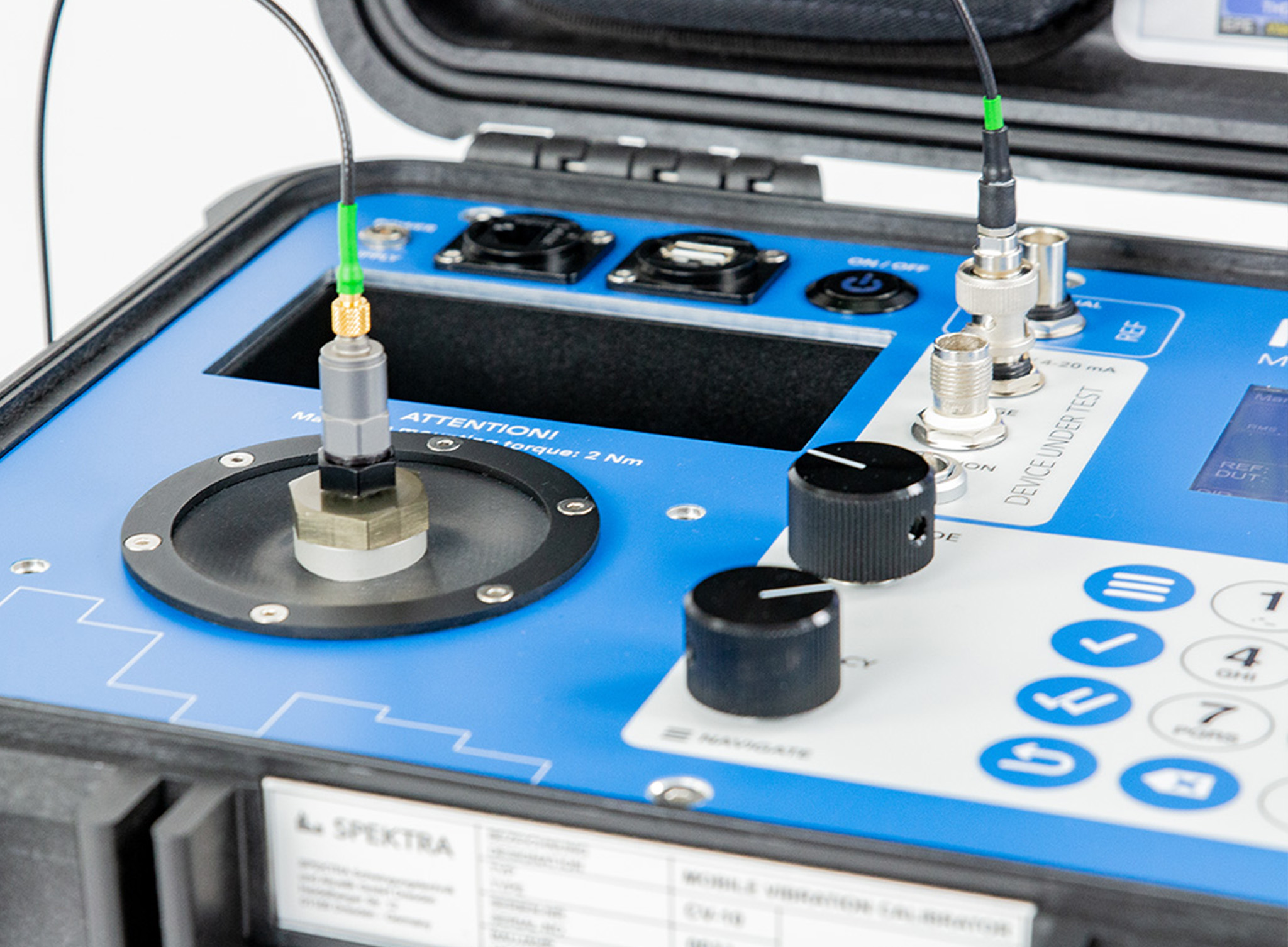

The CV-10 provides all the benefits of a mobile system.
Discover how smart, easy and flexible the on-site test and calibration of accelerometers, proximity probes and velocity sensors can be.

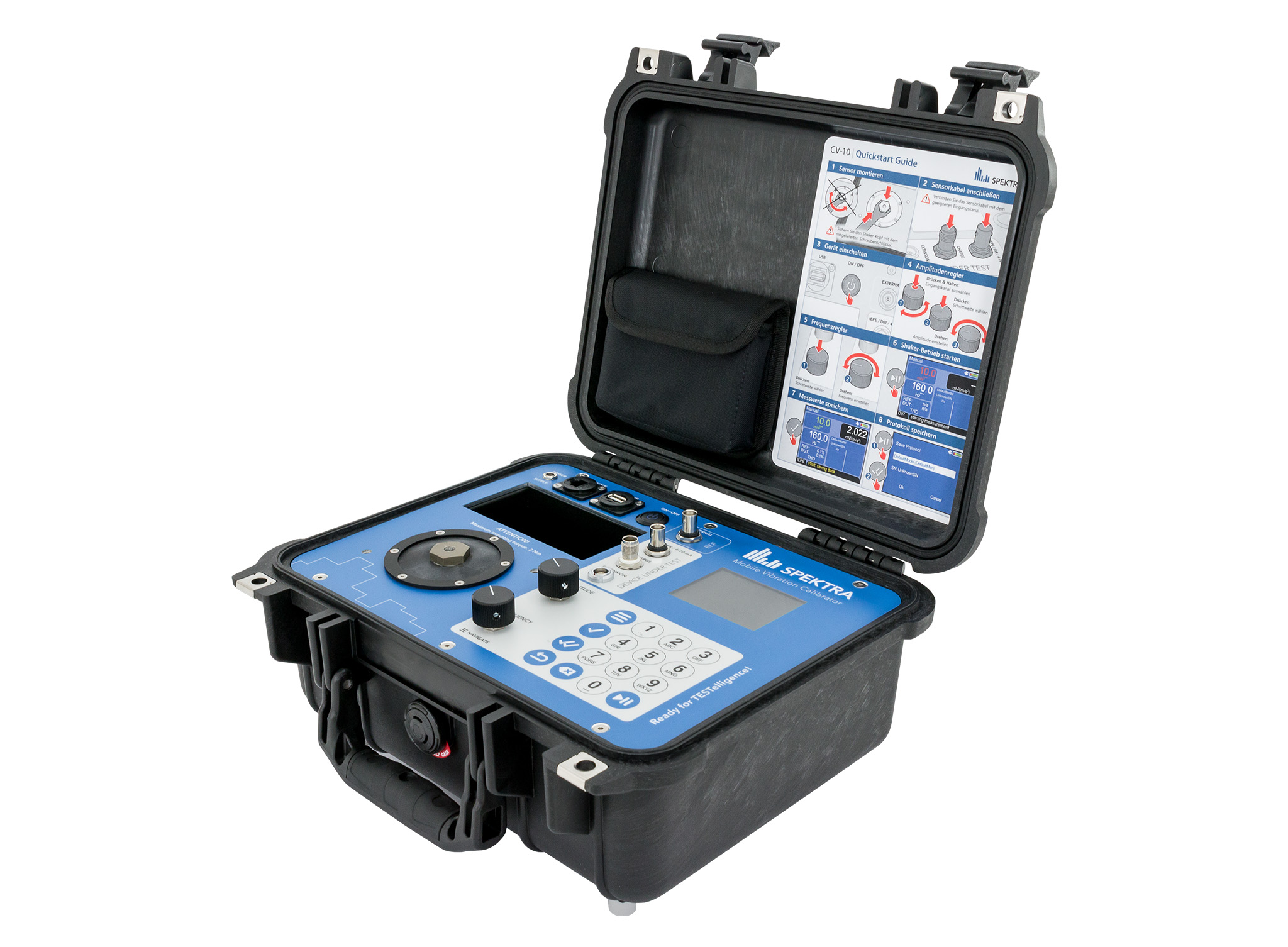

An extensive, portable and lightweight calibration system, traceable to NIST and PTB, delivered in a rugged case – and available at low investment costs!
A wide range of applications in a compact design
The CV-10 was specifically designed to simplify your on-site calibration of accelerometers, proximity probes, velocity sensors and many more. You can test and calibrate vibration meters as well as test beds anywhere, anytime, so you can ensure business continuity and reduce downtimes. Moreover, your test results are traceable to national institutes such as the National Institute of Standards and Technology (NIST) or the German PTB.

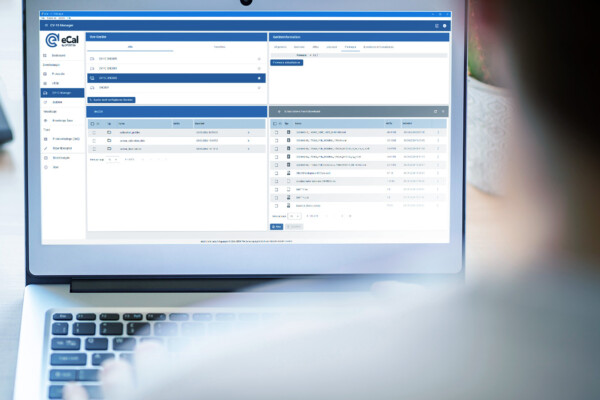

Optimised workflow with the eCal™ CV‑10 Manager
Optimise your processes from test preparation to on-site measurement and data evaluation. Manage your devices from a central location via your network and simply keep track of battery status, software versions and licenses.
Easily exchange data between the local memory of the CV-10 and your network. With the integrated editors, including ready-made templates, you can quickly create individual test and sensor descriptions.
Clever and future-proof features

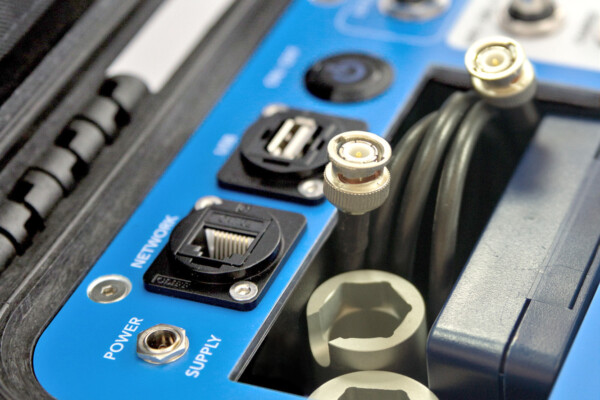

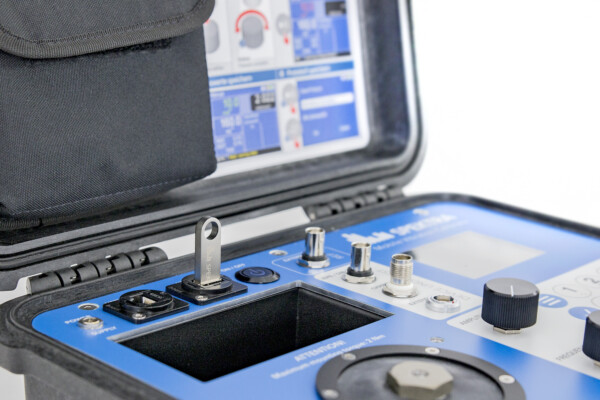

In addition to a powerful vibration exciter and many integrated signal conditioners, the mobile calibrator features an extension port for new exciting options. The already available signal conditioner box for piezo-resistive accelerometers will be followed by a programmable power supply for other sensor types and more options. Data can be exchanged either with a USB stick or simply via Ethernet with the eCal™ CV-10 Manager, which significantly increases efficiency.
Years of experience in calibration loaded in a portable case

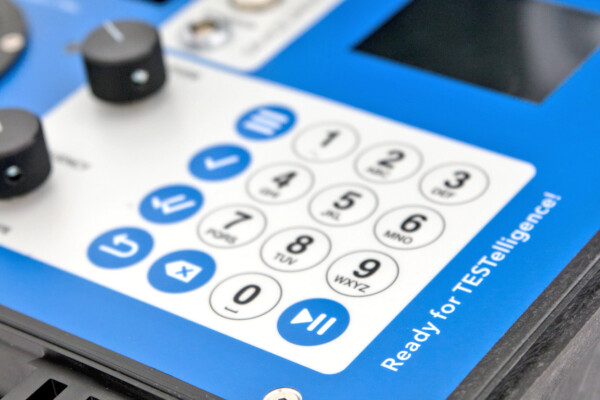

Because SPEKTRA is a specialist in the field of sensor calibration, decades of expertise pour into our product development. Individual customer requirements and knowledge gained from practice and experience in our laboratory help us add innovative features to our products. For the CV-10, this includes a comprehensive range of integrated signal conditioners, simple data exchange and processing, and the choice between a manual mode with presets and an automated mode.

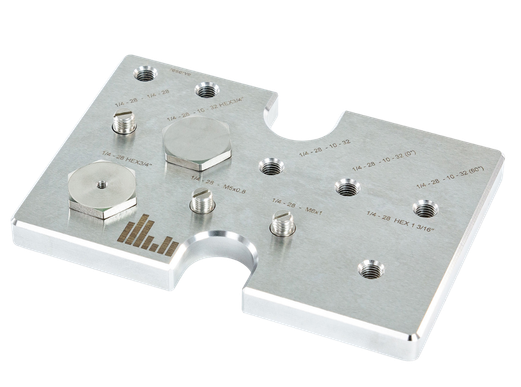

Adapters
Alongside our CV-10 systems, we also provide a wide range of adhesive adapters, mounting adapters, and studs for your sensors.
Products Details
-
frequency range: 5 Hz…10 kHz
-
stroke max. (peak-peak): 5 mm
-
amplitude max.: 200 m/s²
-
standard signal conditioner: direct voltage input, IEPE, charge, 4 mA…20 mA
-
payload max.: 900 g (1.98 lb)
-
only 9 kg
-
up to 10 h battery operation
-
variable 100 V…240 V
-

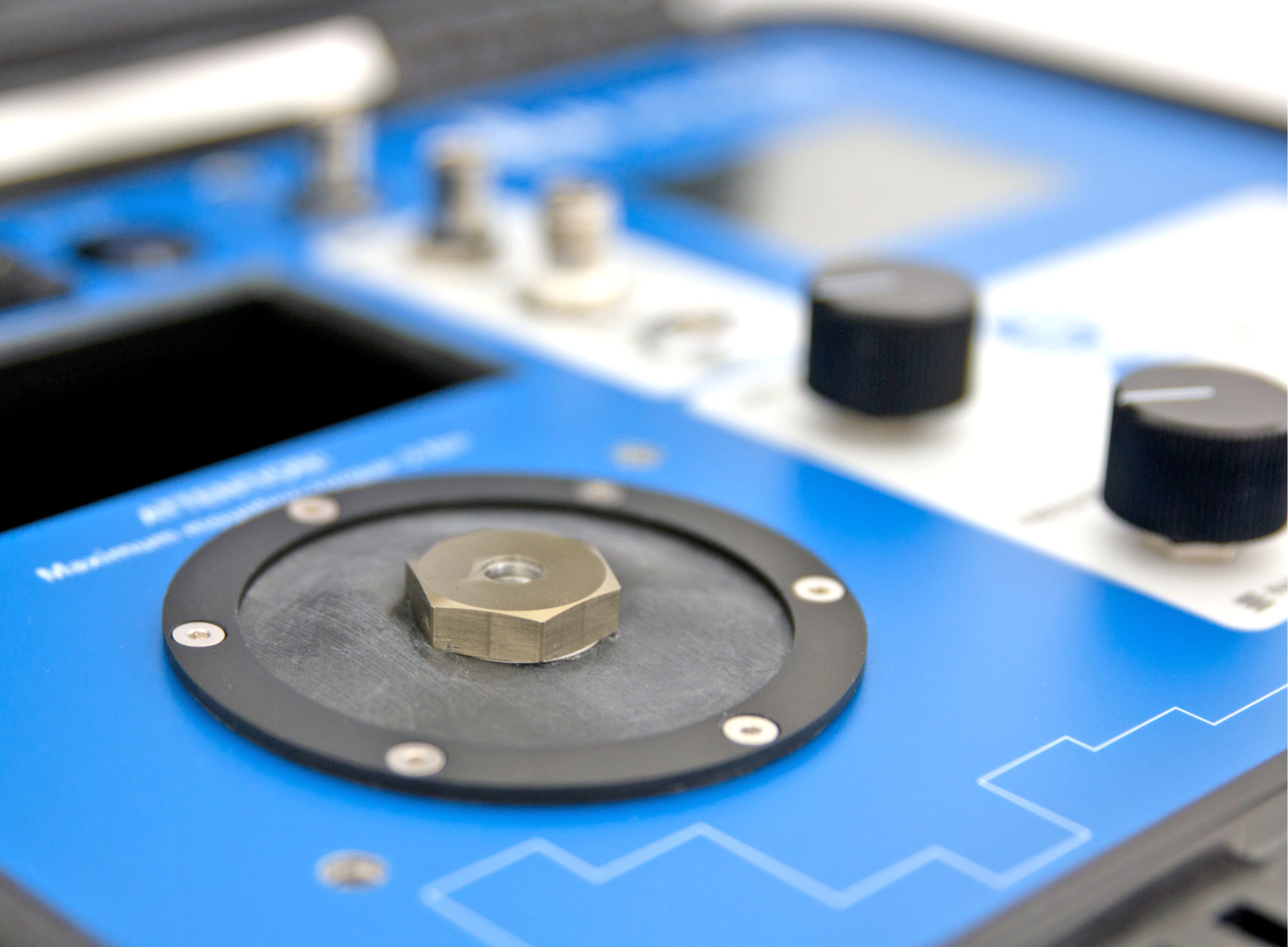

powerful vibration exciter
-
traceable to PTB, NIST etc.
-
network integration with eCal™ CV-10 Manager
