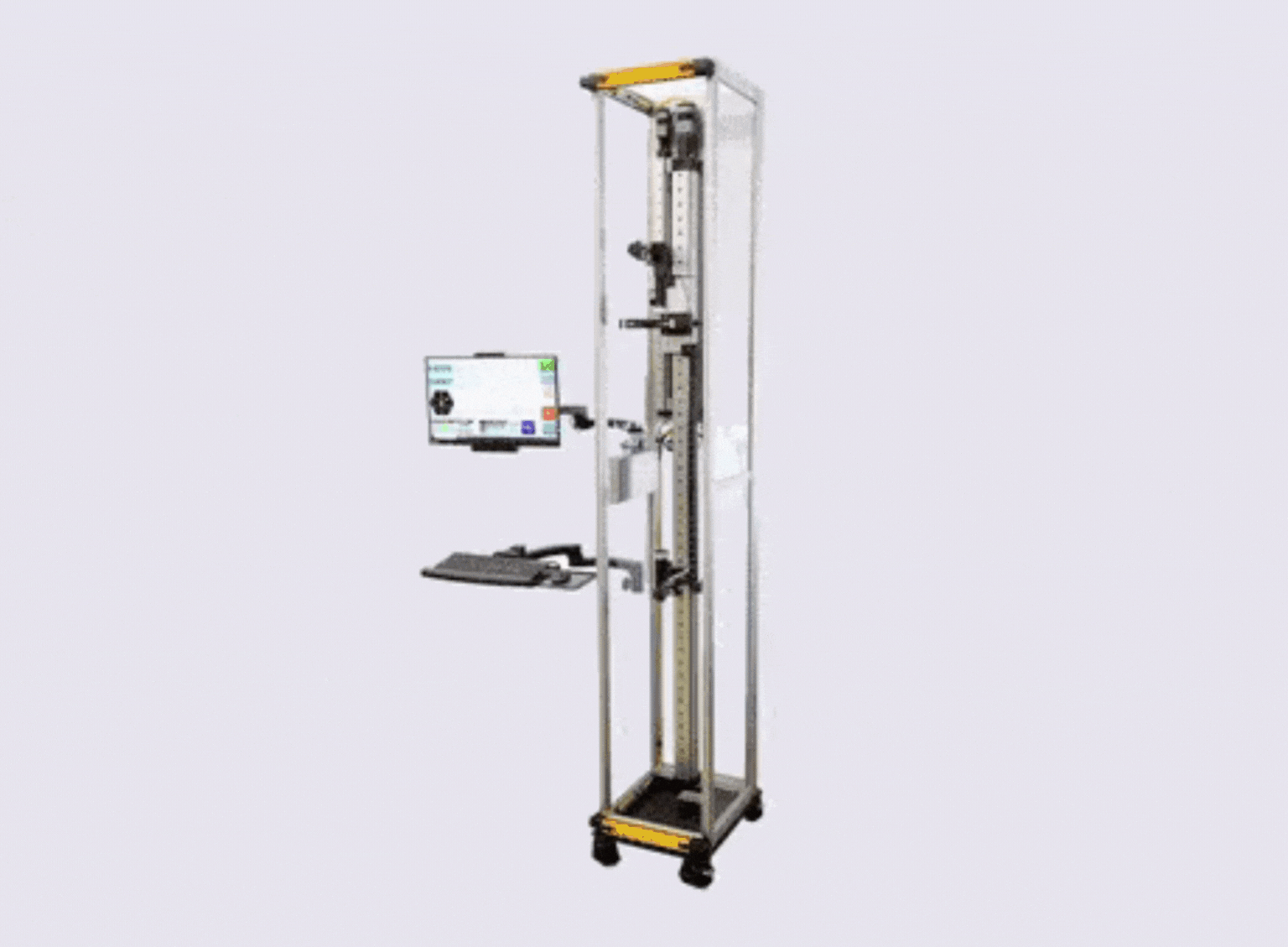

Metron Automated Inspection
In addition to typical in-process, continuous dynamic measurement applications, LaserLinc’s non-contact measurement equipment is well suited for manual and automated off-line sample inspection.
Inspecting cylindrical products with long, thin characteristics, such as camshafts and catheters requires checking multiple locations and dimensions for accuracy.
Metron: Measure Diameter, Ovality, Length and taper

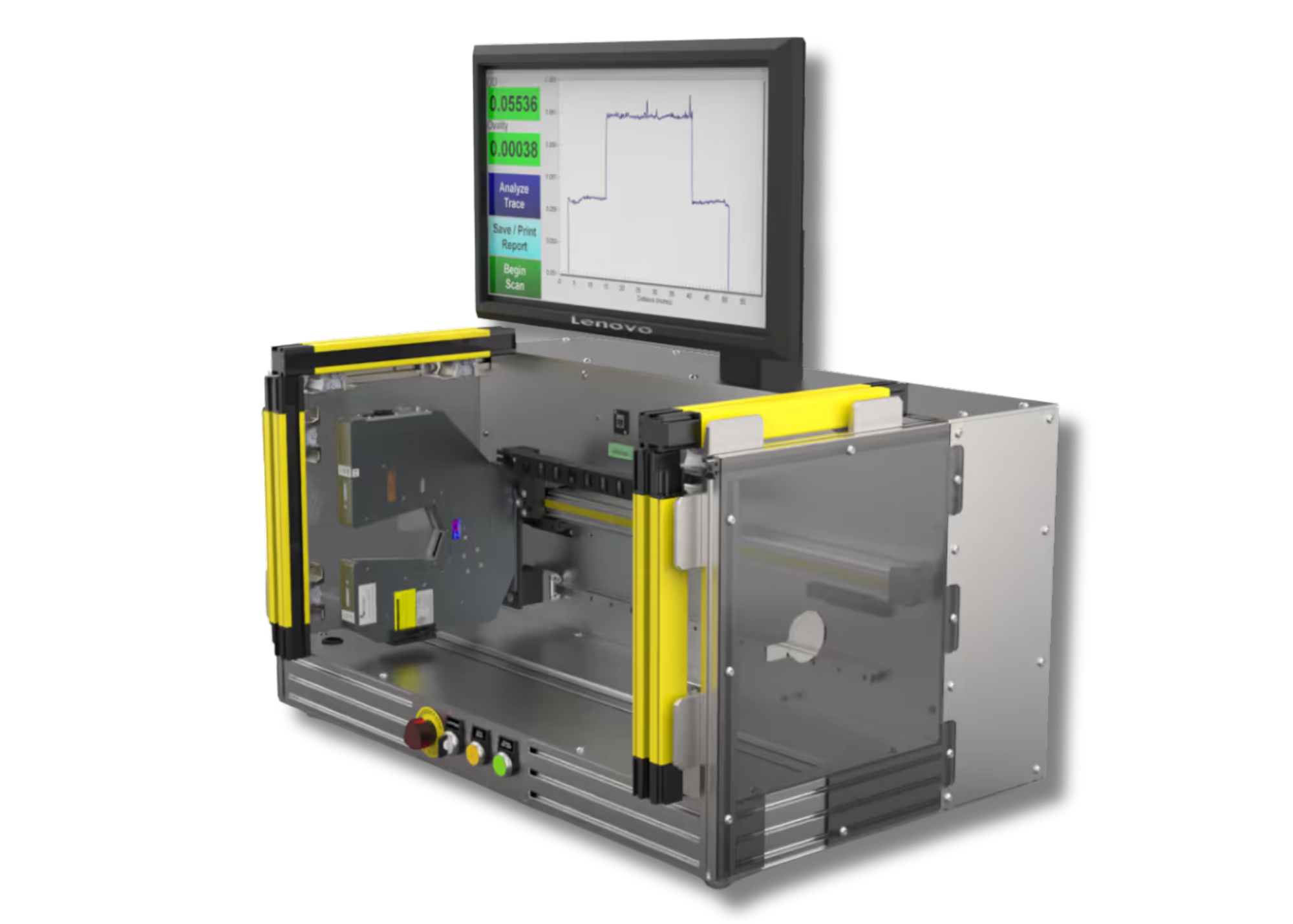

To simplify and automate this process, LaserLinc’s offline Metron system uses software-controlled servos to efficiently and consistently check product profiles against a recipe. And it does this at one station with the press of a button. These systems can measure continually while the slide is moving, or be configured to move-stop-measure-and move again. If needed, these sequences can be combined to create comprehensive inspection routines.
Using the Metron system, customers can expect shorter measurement cycle times, deliver greater value and perform more accurate inspections. Metron systems offer customers a cost-effective automated inspection solution since they are built with mostly off-the-shelf components, including:
Sensor & Linear actuated slide
Light-curtain or enclosure for safe operation
Windows-based PC with optional touchscreen
Total Vu™ software
• Measurement of parts up to 72-inches [1.8m] long with
diameters from 0.004˝–1.15˝ [0.102mm–29.2mm]
• Customisable and repeatable off-line measurement of
cylindrical parts
• Statistical Process Control (SPC) and data logging with
customizable Excel™ reports
• Automatic location of the start and end of product on a
mandrel
• Integration with Total Vu™ HMI, allowing for easy
visualisation of dimensions and profiles
• Multiple holding solutions to accommodate many
product types
Features and Benefits
• Measurement of parts up to 72-inches [1.8m] long with diameters from 0.004˝–1.15˝ [0.102mm–29.2mm]
• Customisable and repeatable off-line measurement of cylindrical parts
• Statistical Process Control (SPC) and data logging with customizable Excel™ reports
• Automatic location of the start and end of product on a mandrel
• Integration with Total Vu™ HMI, allowing for easy visualisation of dimensions and profiles
• Multiple holding solutions to accommodate many product types
