Medium-Force (M-Series) Air-Cooled Shakers
15 – 75 kN (3300 – 16,500 lbf)

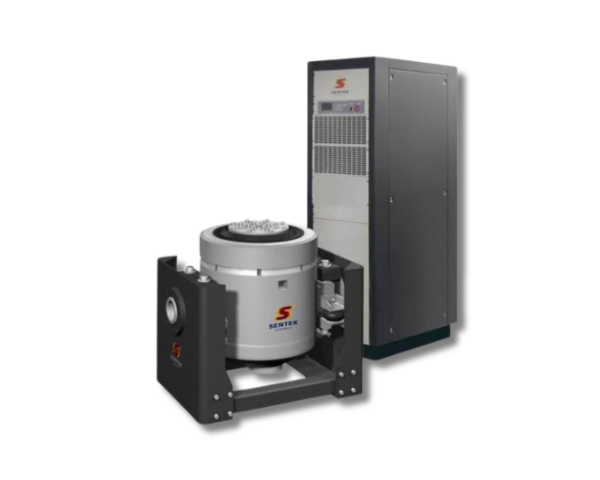

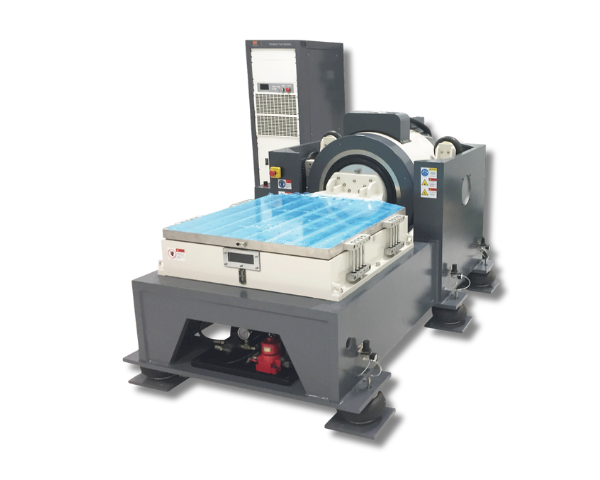

The M-Series air-cooled electro-dynamic shakers from Sentek Dynamics are designed for the vibration testing of medium-sized payloads such as automotive components and other types of electronics assemblies up to 1000 kg (2200 lb).
KEY APPLICATIONS:
- Automotive parts and systems – qualification testing
- Electronic assembly, computer equipment testing
- Avionics and military hardware vibration testing
- Satellite component vibration testing
- Product and package vibration testing
- General stress screening
FEATURES:
- Armatures diameters from 280 mm (11 in) to 640 mm (25.2 in) with metric or American pcd.
- Internal load support is standard
- Active armature suspension system
- Standard body isolation and guidance system designed to eliminate the use of a seismic base
- Useful vibration control frequency range from 5 to 3000 Hz
- Some systems are available with 76 mm (3 in) displacement
| System Performance | M1528A | M2232A | M3240A | M3264M | M4040A | M5044A | M5064M | M6044A | M6544A | M7544A |
|---|---|---|---|---|---|---|---|---|---|---|
| Sine Force Peak kN (lbf) | 14.70 (3304) | 21.56 (4846) | 31.36 (7050) | 31.36 (7050) | 39.20 (8812) | 49.0 (11,015) | 49.0 (11,015) | 58.80 (13,218) | 63.70 (14,320) | 73.5 (16,523) |
| Random Force rms kN (lbf) | 14.70 (3304) | 21.56 (4846) | 31.36 (7050) | 21.90 (4923) | 39.20 (8812) | 49.0 (11,015) | 49.0 (11,015) | 58.80 (13,218) | 63.70 (14,320) | 73.5 (16,523) |
| Shock Force (6 ms) kN (lbf) | 29.40 (6609) | 43.12 (9693) | 62.72 (14,100) | 62.72 (14,100) | 78.40 (17,625) | 98 (22,031) | 98 (22,031) | 117.60 (26,437) | 127.40 (28,640) | 147 (33,047) |
| Frequency Range (Hz) | 5 – 3000 | 5 – 3000 | 5 – 2500 | 2 – 2000 | 5 – 2200 | 5 – 2500 | 2 – 2300 | 5 – 2500 | 5 – 2400 | 5 – 2400 |
| Continuous Displacement mm (in) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) |
| Shock Displacement mm (in) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) | 51 (2.0) |
| Max Velocity m/s (in/s) | 2.0 (78.7) | 2.0 (78.7) | 2.0 (78.7) | 1.8 (70.8) | 2.0 (78.7) | 2.0 (78.7) | 1.8 (70.9) | 2.0 (78.7) | 2.0 (78.7) | 2.0 (78.7) |
| Max Acceleration Sine Peak m/s2 (g) | 784 (80) | 980 (100) | 980 (100) | 784 (80) | 980 (100) | 980 (100) | 784 (80) | 980 (100) | 980 (100) | 980 (100) |
| Armature Diameter mm (in) | 280 (11.0) | 320 (12.6) | 400 (15.8) | 640 (25.2) | 400 (15.8) | 445 (17.5) | 640 (25.2) | 445 (17.5) | 445 (17.5) | 445 (17.5) |
| Effective Armature Mass kg (lb) | 18 (39.7) | 22 (48.5) | 32 (70.5) | 40 (88.2) | 40 (88.0) | 49 (108) | 63 (139) | 49 (108) | 55 (121) | 65 (143.3) |
| Max Static Payload kg (lb) | 300 (661) | 300 (661) | 500 (1102) | 500 (1102) | 500 (1102) | 1000 (2205) | 1000 (2204) | 1000 (2205) | 1000 (2205) | 1000 (2205) |
