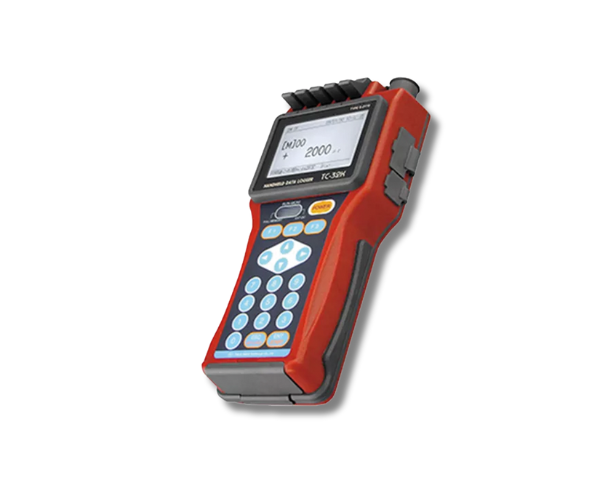

Network Handheld Strainmeter TC-35N
The TC-35N is a handheld instrument which captures and processes the digitised strain data from network modules. It can be used for checking the system on site and/or constructing a small measurement system. By adopting low-consumption type network modules, the number of connectable modules and extending distance between modules are enlarged drastically, and the construction of a comparatively larger measurement system is easily enabled.
Features
- Small, light and easy to carry
- 4 pieces of AA(LR6) battery operation – Easy battery exchange on site
- Drip-proof construction
- Built-in data memory
- Compact Flash Card can be used
- Built-in interval timer
- Control and data transmission by RS-232C interface
- Automatic measurement with sleep interval function
- Use of external DC power supply is available

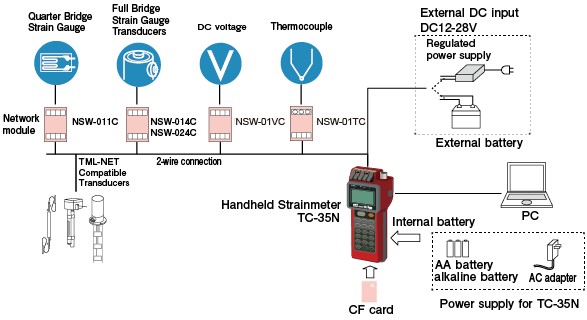

System Block Diagram
| Type | TC-35N |
|---|---|
| Maximum number of connection |
Conventional module: 5 modules (when using internal AA batteries or AC adaptor) Low-comsumption module: 50 modules (when using internal AA batteries or AC adaptor) |
| Maximum extension distance |
Conventional module: 50m (when using internal AA batteries or AC adaptor) Low-comsumption module: 50m (when using internal AA batteries or AC adaptor) |
| Applicable transducer | Conforms to network module |
| Data acquisition speed | Approx. 0.2sec/ch in scanning measurement |
| Function | Scanning measurement, Monitoring measurement, Module checking function, ID checking function, Reading transducer information (CAP, RO), Setting channel of network module |
| Dimensions | 102(W) x 55(H) x 223(D)mm |
| Weight | Approx. 850g |
| Power source | Alkaline dry battery LR6×4 or Dedicated AC adaptor |
