Dual-Axis Laser Micrometers

Our dual-axis (also called dual-plane) laser micrometers measure products from two directions, precisely calculating product diameter, ovality, and position. These two axes of measurement are coplanar and perpendicular to each other, and the measurement field is perpendicular to the product.

Product Description

Our dual-axis (also called dual-plane) laser micrometers measure products from two directions, precisely calculating product diameter, ovality, and position. These two axes of measurement are coplanar and perpendicular to each other, and the measurement field is perpendicular to the product.

Dual-axis inspection offers accurate measurements for a variety of product profiles. Common product profiles include:

  • Rectangular (width and height or width and thickness)

  • Triangular (base and height)

  • Hexagonal (flat-to-flat distance)

The technology is especially useful for identifying small defects that do not encircle the product, and which cannot be reliably detected using other measurement tools.

For benchtop applications, these micrometers can inspect products without rotating them, saving time while attaining a high degree of accuracy.

Notable Applications

Dual-axis laser micrometers are used in a variety of applications, including:

  • Extruded products such as insulated wire, cable, hose, pipe, and tubing

  • Optical fiber

  • Corrugated products such as flexible gas pipe, anesthesia or respiratory tubing, and pipe

  • Multi-strand measurement of magnet wire, monofilament or other multi-die extrusions

  • Piece-part inspection

Accessories

  • Roller guides

  • Stands

  • Calibration kits

  • Window guards

  • Air purges

  • V-blocks

  • Automated Sample Inspection

Product Model Comparison

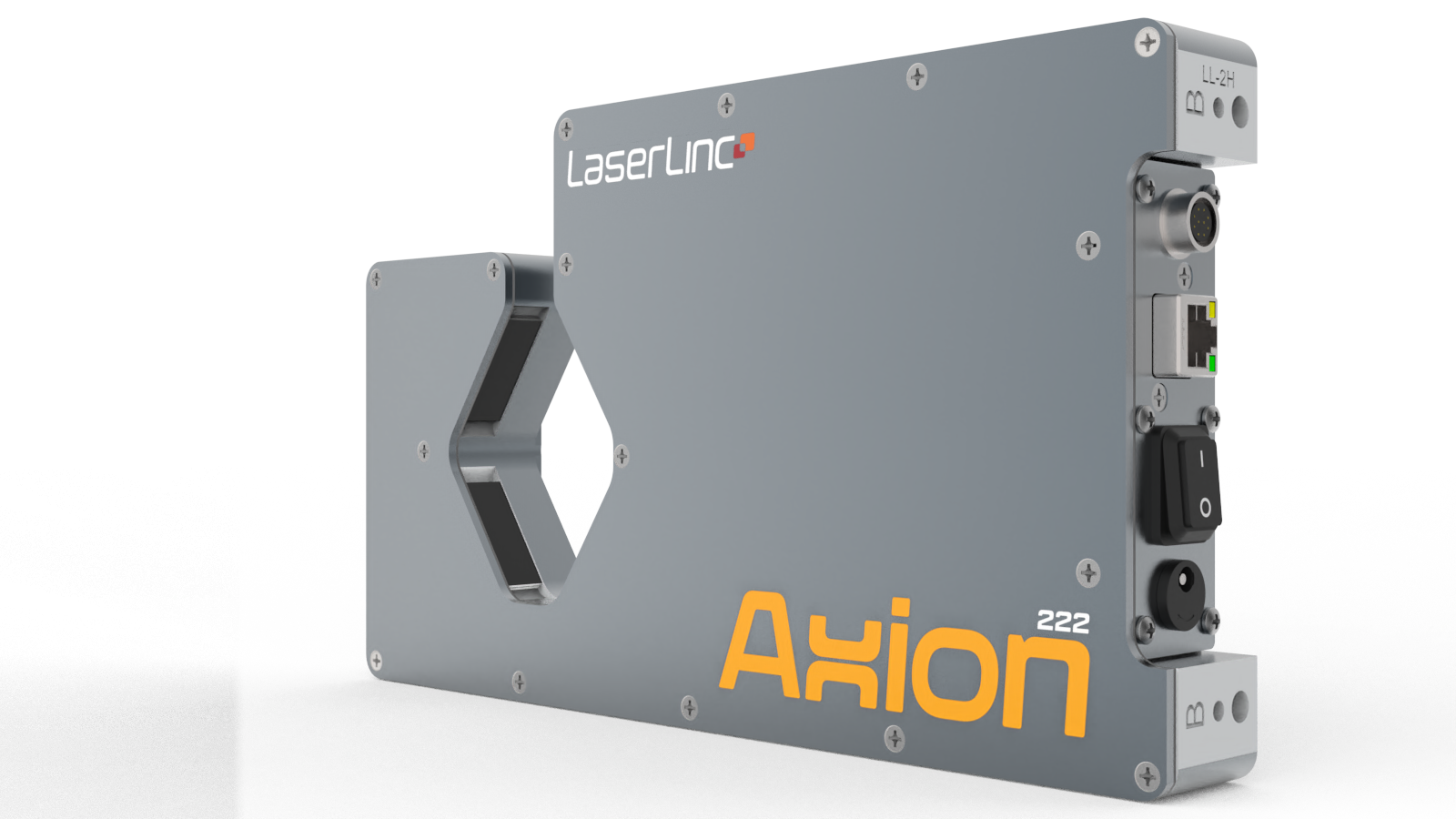

  AXION 203™ AXION 222™ AXION 230™ AXION 260™ AXION 2120™
Measurement Range 0.00158″ – 0.079″ [0.04mm – 2mm] 0.003″ – 0.85″ [0.076mm – 21.6mm] 0.007″ – 1.15″ [0.178mm – 29.2mm] 00.016″ – 2.2″ [0.406mm – 56mm] 0.028″ – 4.5″ [0.7mm – 114mm]
Measurements per second (Hz)¹ 2400 [1200 per axis] 800 [400 per axis] 3200 [1600 per axis]8000 [4000 per axis] (optional) 3200 [1600 per axis]8000 [4000 per axis] (optional) 3200 [1600 per axis]8000 [4000 per axis] (optional)
Gate Size 0.114″ [2.9mm] 0.91˝ [23.1mm] 1.18˝ [30mm] 2.36″ [60mm] 4.72″ [120mm]
Repeatability² Unaveraged ±0.0001˝ [±2.5µm] ±0.0001˝ [±2.5µm] ±0.0004″ [±10µm] ±0.0011″ [±28µm] ±0.0022″ [±56µm]
Repeatability² Two Second ±0.000001″ [±0.0254µm] ±0.000005˝ [±0.125µm] ±0.000005″ [±0.13µm] ±0.00001″ [±0.25µm] ±0.00004″ [±1.0µm]
Positional Error³ ±0.0001˝ [±2.5µm] ±0.0001˝ [±2.5µm] ±0.0001˝ [±2.5µm] ±0.0002˝ [±5µm] ±0.0004″ [±10µm]
Approx. Dimensions ( H x W x D) 7″ x 6.625″ x 1.863″ [177.8mm x 168.3mm x 47.3mm] 5.9″ x 10.2″ x 1.25″ [149.9mm x 259mm x 31.8mm] 10.85″ x 12.6″ x 1.5″ [275.6mm x 320mm x 38.1mm] 14.5″ x 16″ x 1.75″ [368.3mm x 406.4mm x 44.5mm] 22″ x 21.13″ x 2″ [558.8mm x 539.7mm x 50.8mm]
Approx. Weight 6 lbs [2.7kg] 5lbs [2.27kg] 10 lbs [4.5kg] 21 lbs [9.53kg] 40.5 lbs [18.37kg]
Power Requirements 100-240 VAC 50/60 Hz 50 W max. PoE(Power over Ethernet)
Alternate: 12VDC @125mA (1.25A recommended)		 100-240 VAC 50/60 Hz 50 W max. 100-240 VAC 50/60 Hz 50 W max. 100-240 VAC 50/60 Hz 50 W max
