T-ZACCS 9 Data Loggers

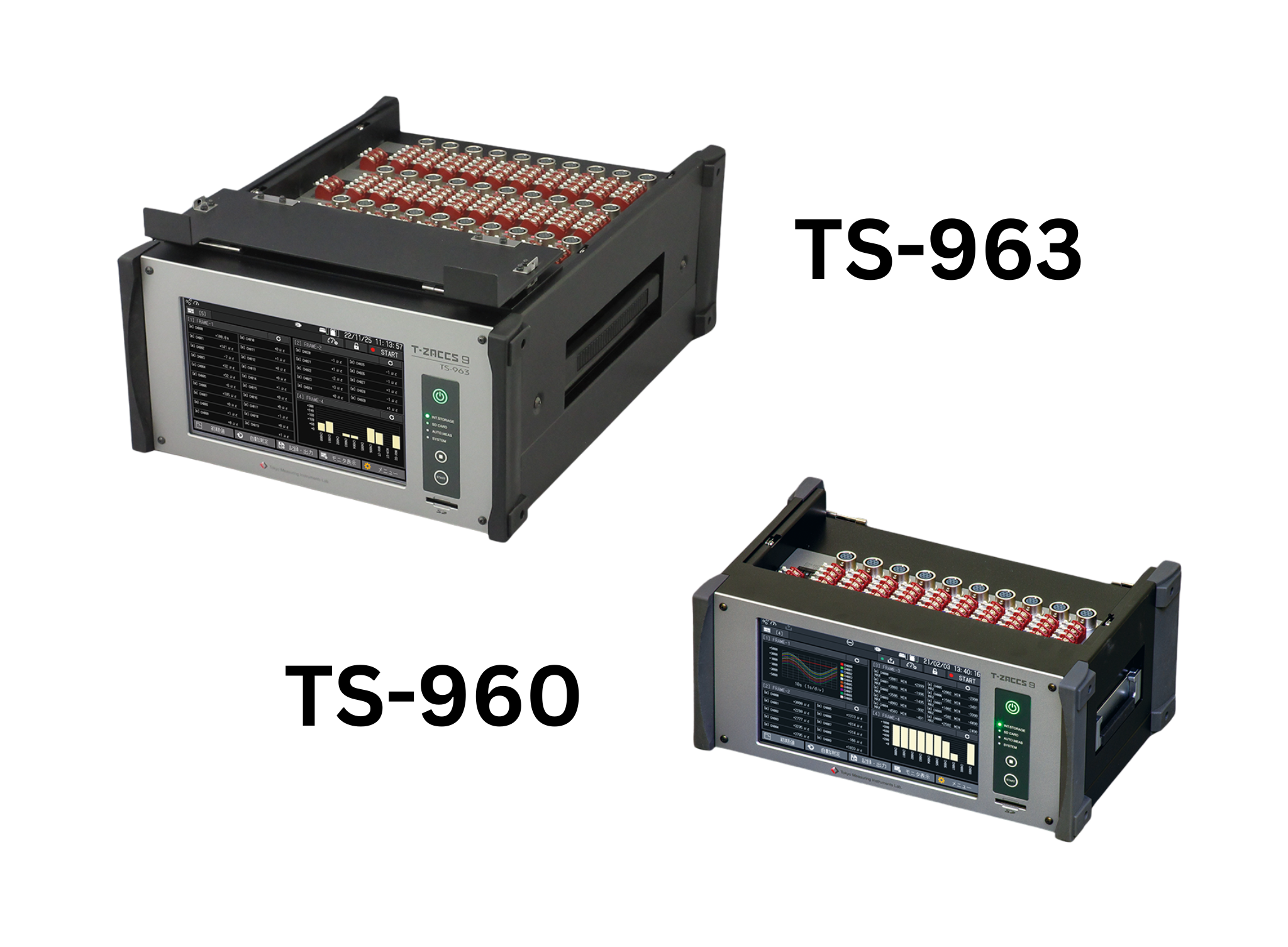

The T-ZACCS 9 range of data loggers offers high speed, high accuracy and a highly functional overall data logger. There are 2 types, TS-960 and TS-963. The TML Japan TS-963 and TS-960 are both data loggers in the T-ZACCS 9 series, but the TS-963 offers more measurement points and expanded calculation capabilities. The TS-960 can measure 10 points, expandable to 20 with temperature-integrated strain gauges, while the TS-963 can measure 30 points, expandable to 60 with the same gauges. Both models offer a high-speed measurement mode with a 0.1-second update rate.

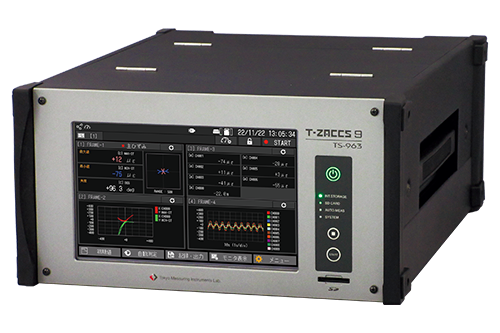

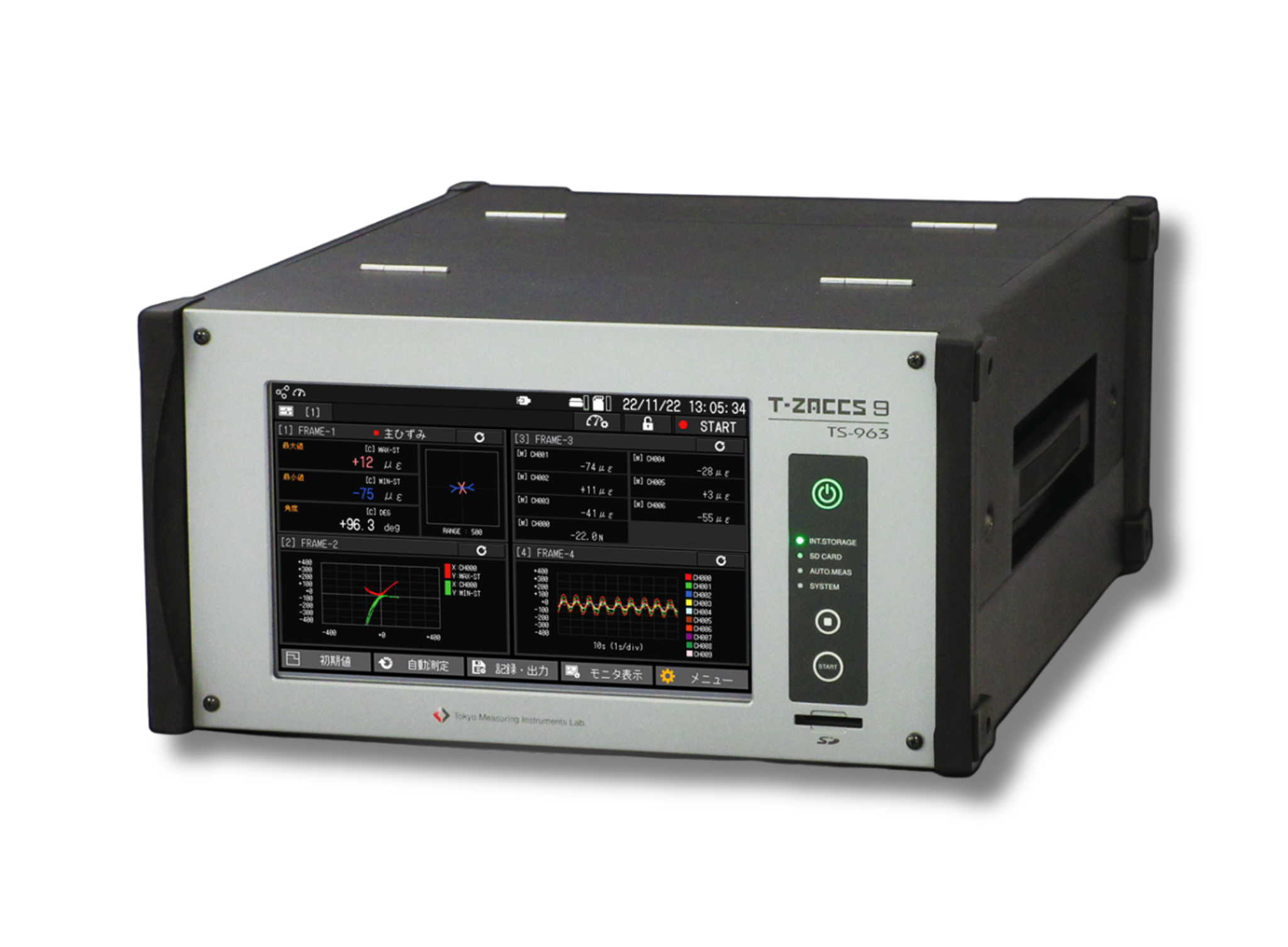

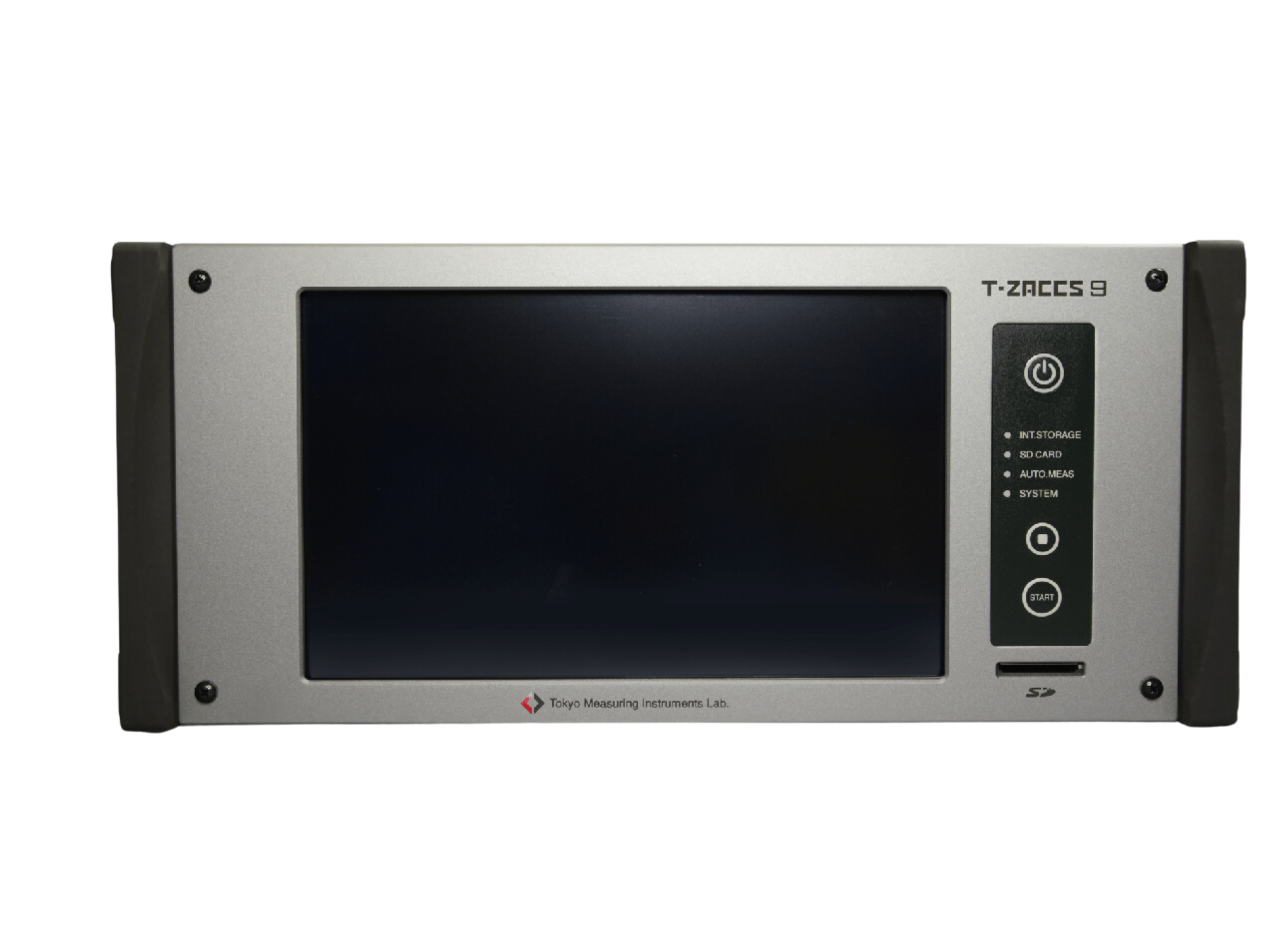

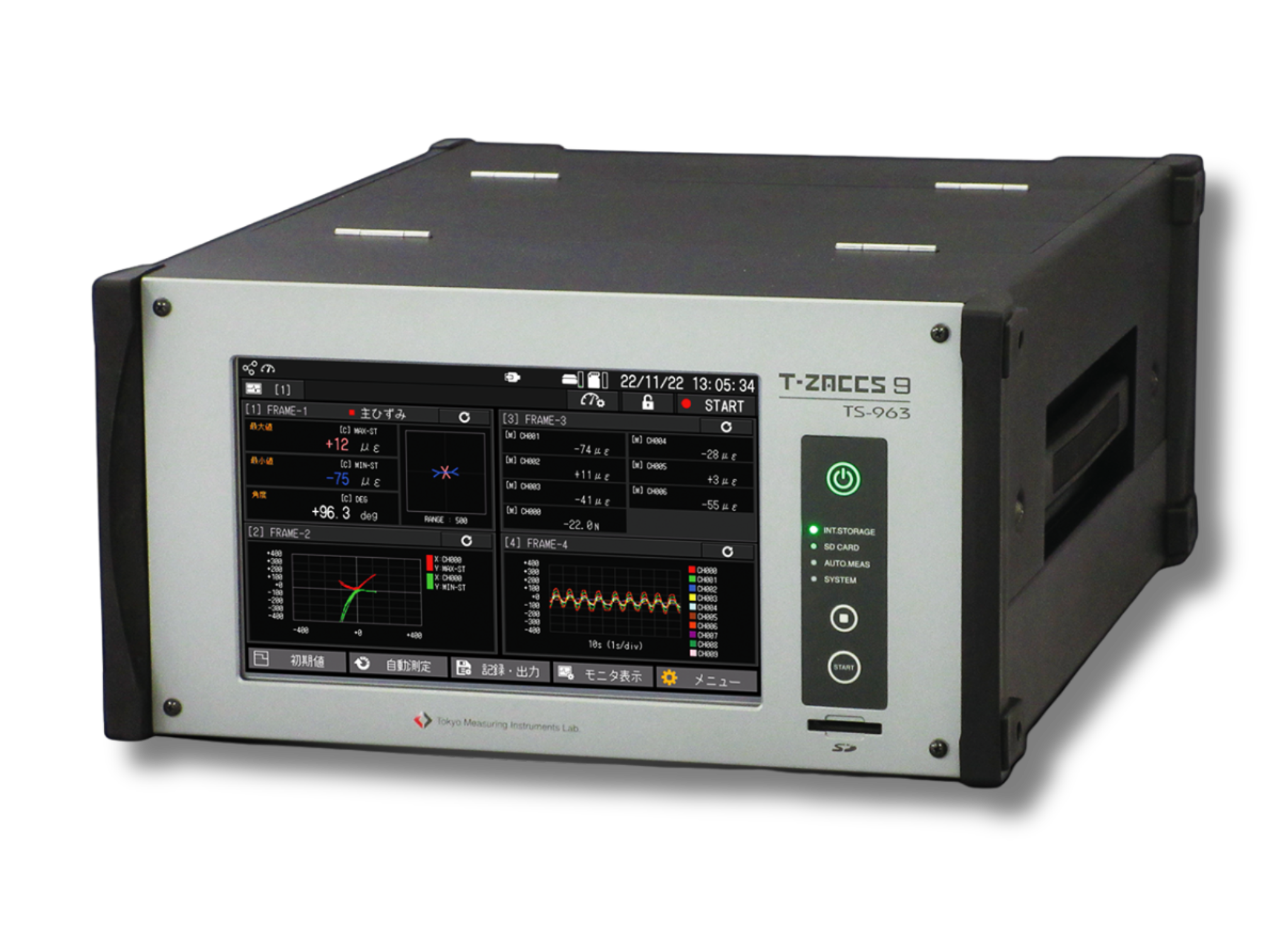

T-ZACCS9 Data Logger TS-963

This is the top-of-the-line model of the high-speed, high-accuracy, high-functionality data logger T-ZACCS 9. Capable of measuring in as fast as 0.1 sec. Built-in 30 channels can be monitored and displayed without a PC, and our unique next-generation A/D method eliminates noise for highly accurate and stable measurement. Full range of monitor display functions.

In addition, a remote data logger function is now available to remotely control the data logger via a web browser.

Real-time computing function
The TS-963 is equipped with an extended calculation function that performs calculations in real time by substituting measured values into a calculation formula set arbitrarily by the user.
Calculations such as finding the maximum, minimum, and average values from multiple measurement data or converting them to other physical quantities by combining them with various functions can be performed in real time with a single measuring instrument.
Calculation results can be recorded and displayed in the same way as measurement data, and in combination with an analogue output unit, can be output externally as a voltage corresponding to the calculation results.

Full range of monitor display functions
It has the ability to display measurement data values in real time and can display up to 60 measurement data points at a time.
It can also display changes in values as vectors (arrows).

Automatic measurement function for various measurements
It has an automatic measurement function that automatically initiates measurements based on conditions set by the user.
Five different functions are available to automatically perform measurements in accordance with the user’s measurements.
In addition, interval measurement and comparator measurement each have 10 systems, which can be combined with other automatic measurement systems to operate in parallel.

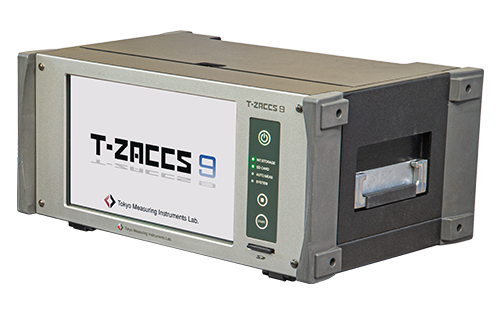

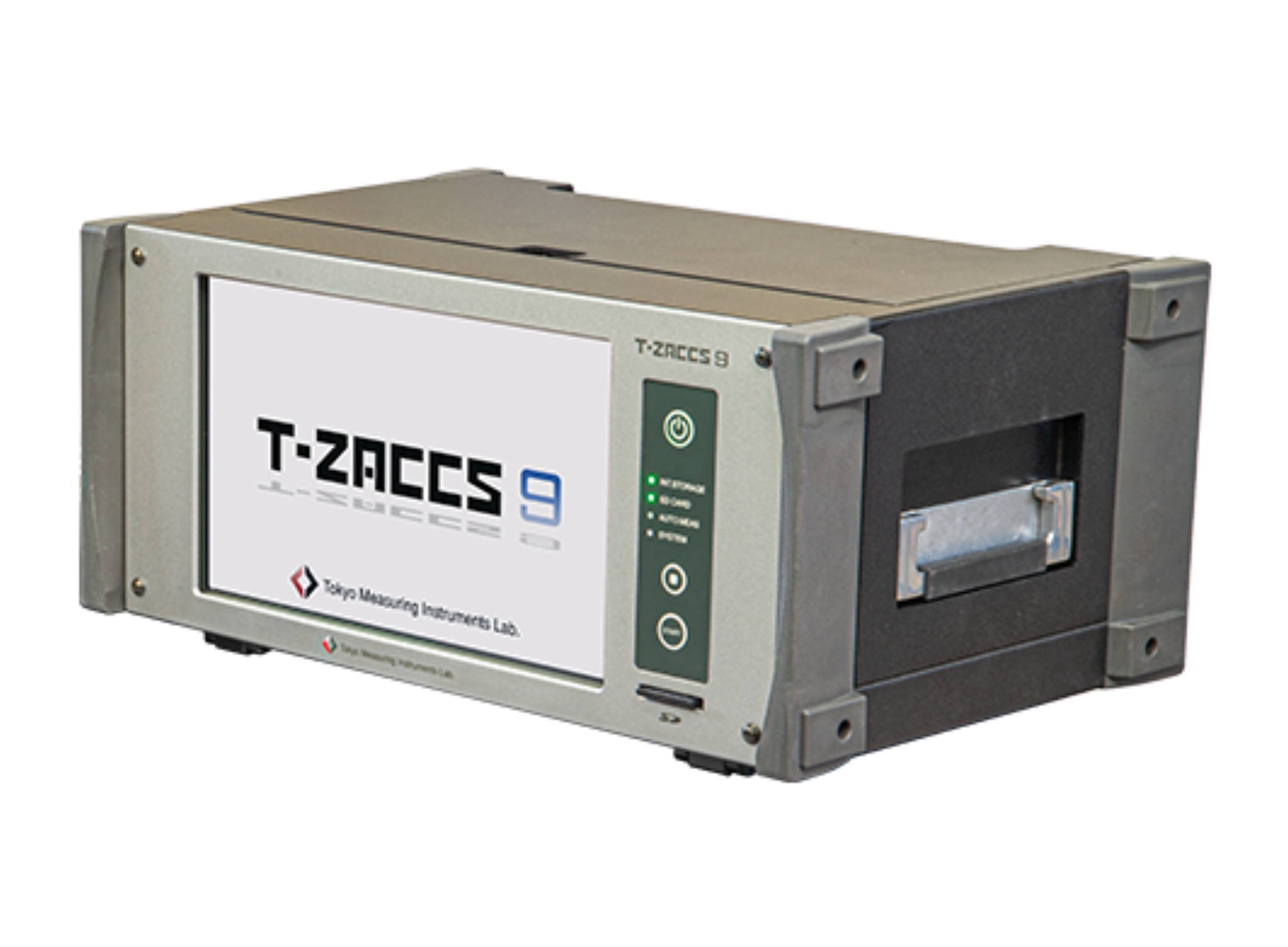

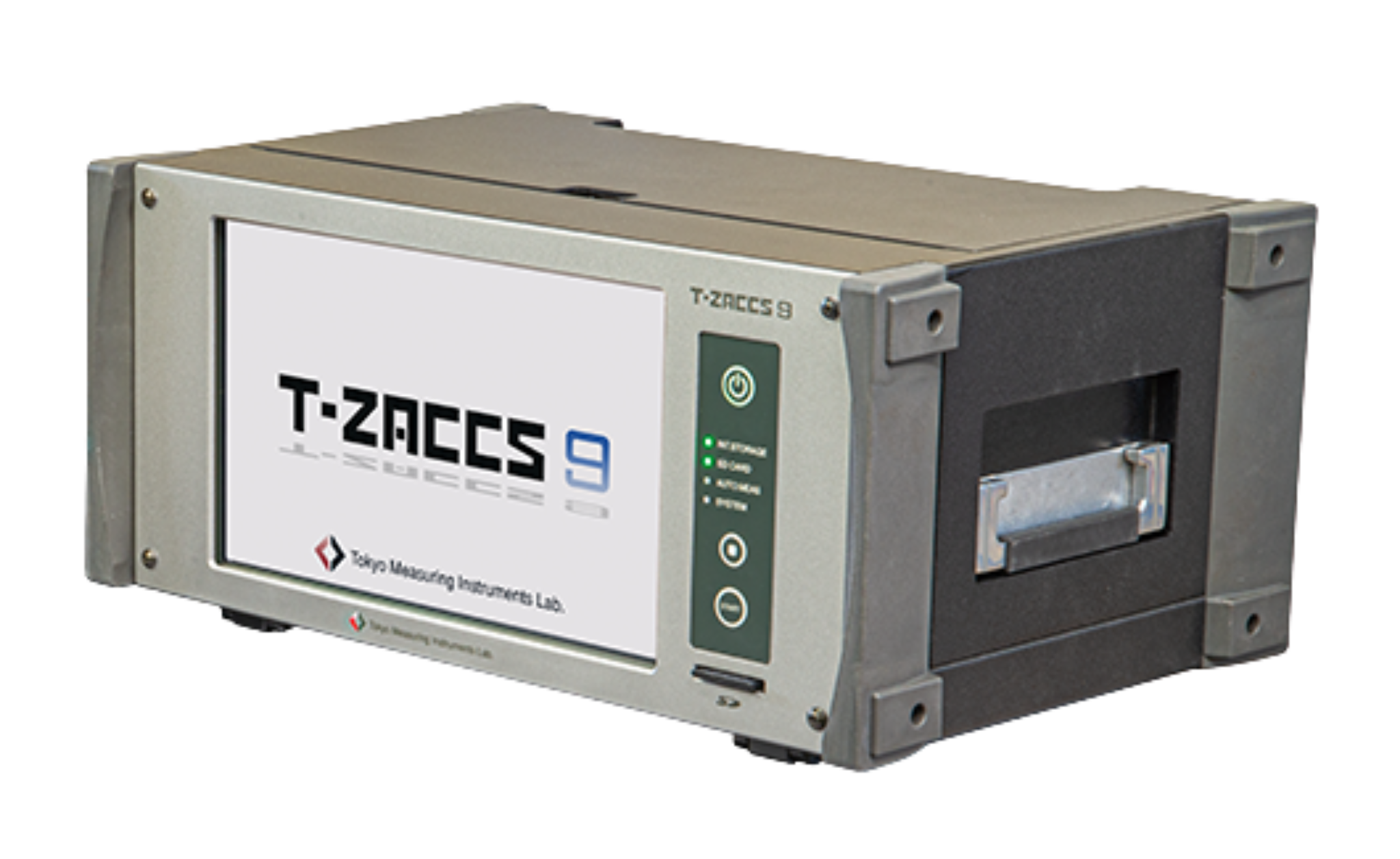

T-ZACCS 9 Data Logger TS-960

This is the top-of-the-line data logger in the T-ZACCS series that features high-speed, high-accuracy and high-functionality. Measurement of various inputs, including strain gauges, strain gauge type transducers, thermocouples, Pt-RTDs and dc voltage, are possible. The T-ZACCS 9 TS-960 is an all-in-one data logger filled with everything required for measurement.
