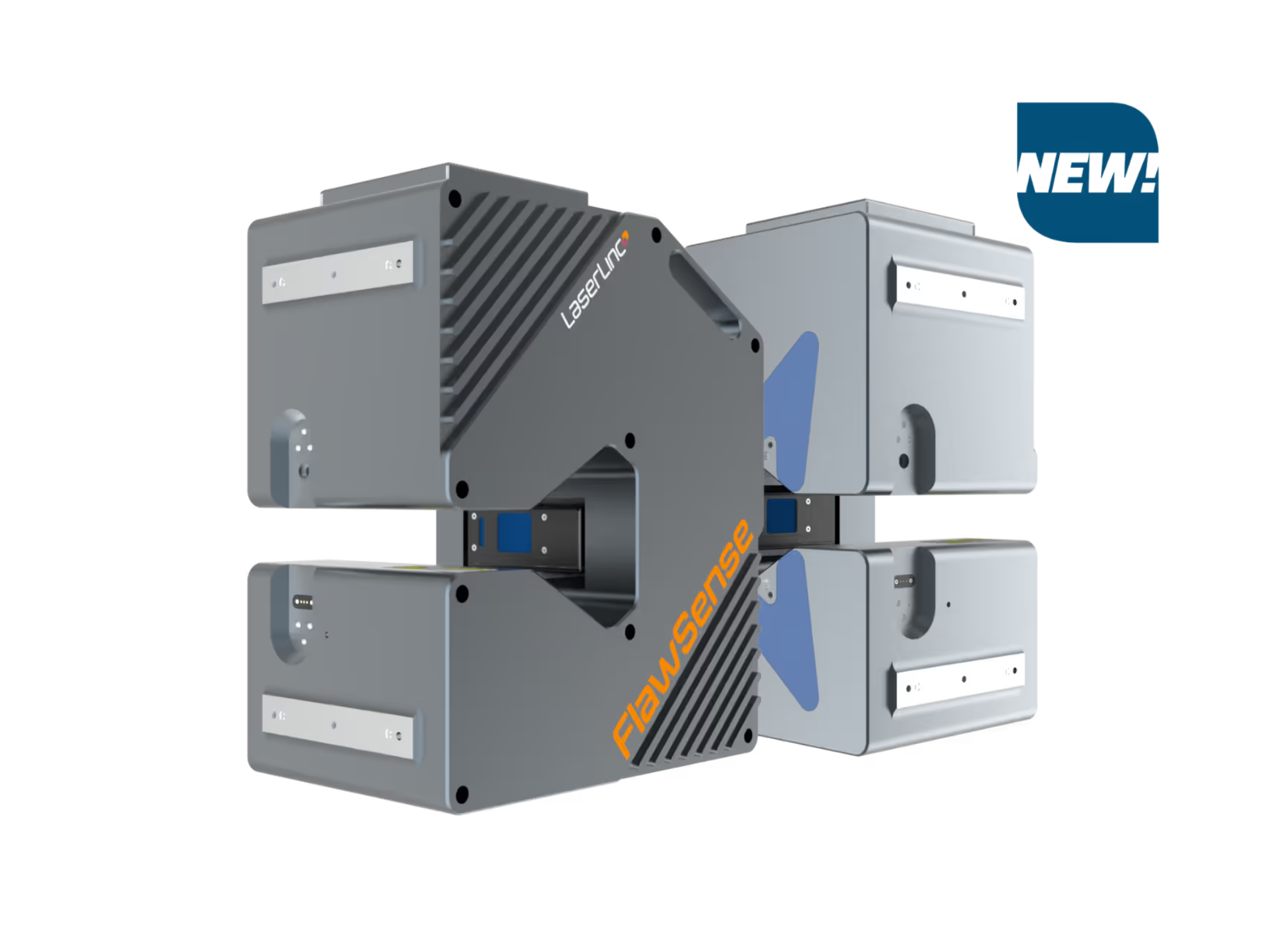

FlawSense

The Premier Solution and Industry Innovation from LaserLinc

FlawSense technology is the first-of-its-kind defect detection tool that uses laser-linc triangulation to measure diameter and ovality, providing a contour map at speeds up to 10,000 times per second and nearly 100% inspection coverage. It accurately measures the outer diameter, evaluates ovality, and identifies defects using a true 360-degree view.

Find the Right Solution

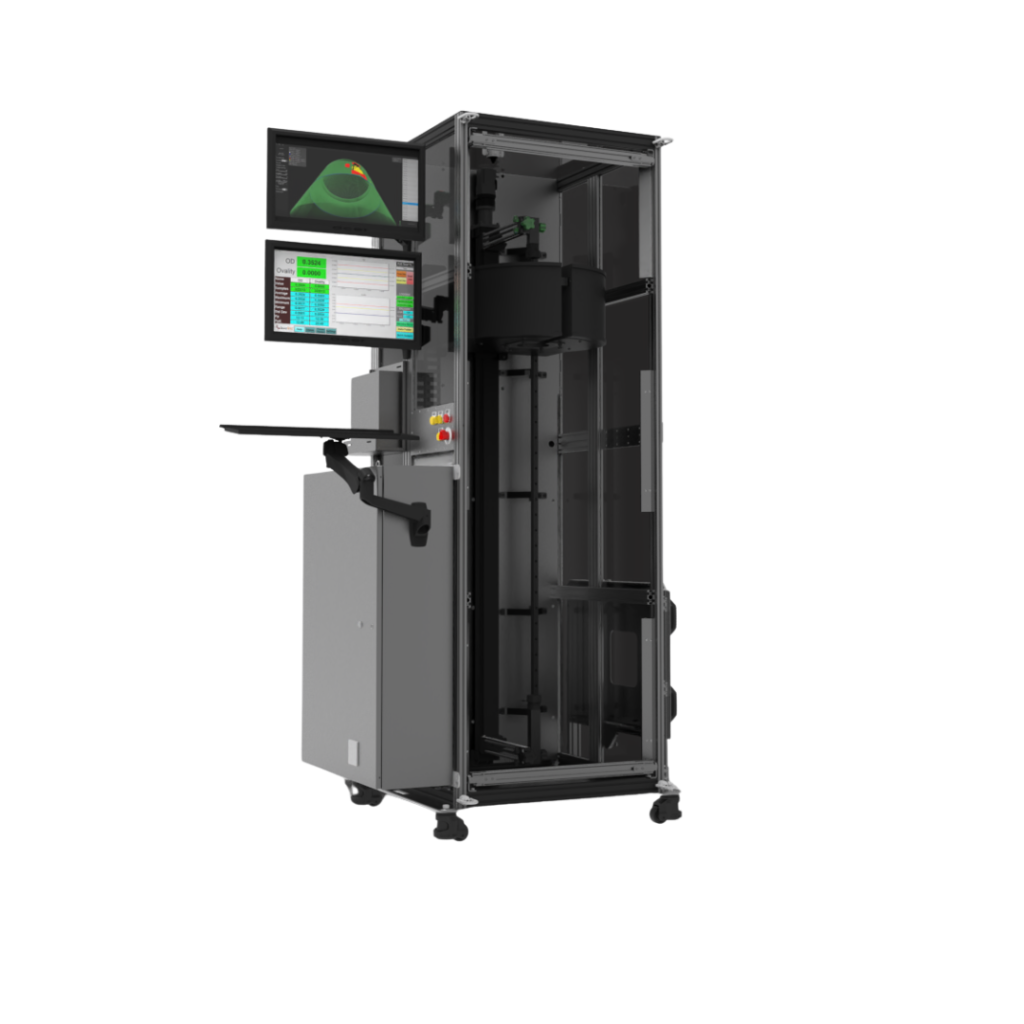

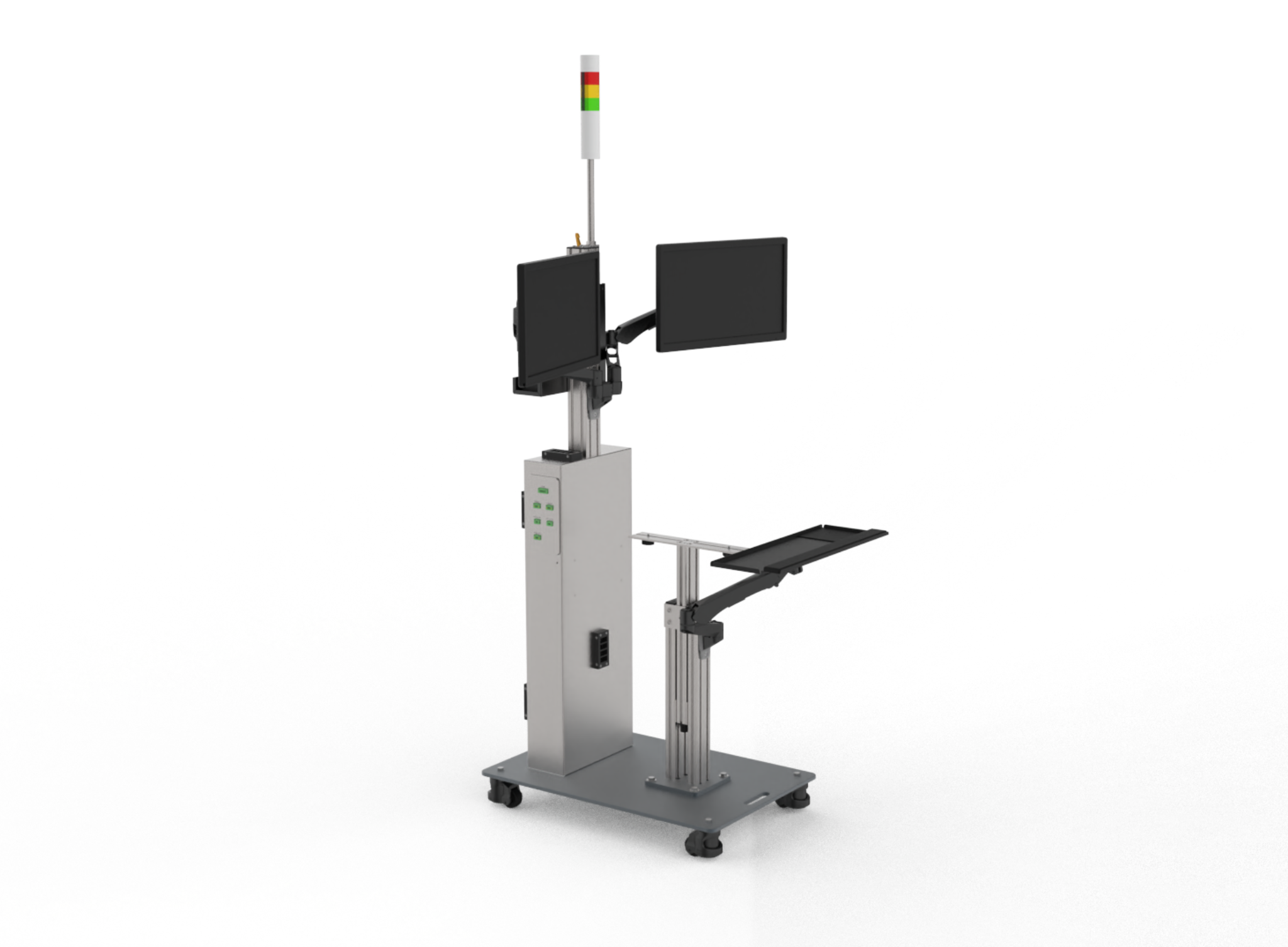

On-line Mobile Solution- This mobile system is equipped with casters, making moving it to any desired location effortless.

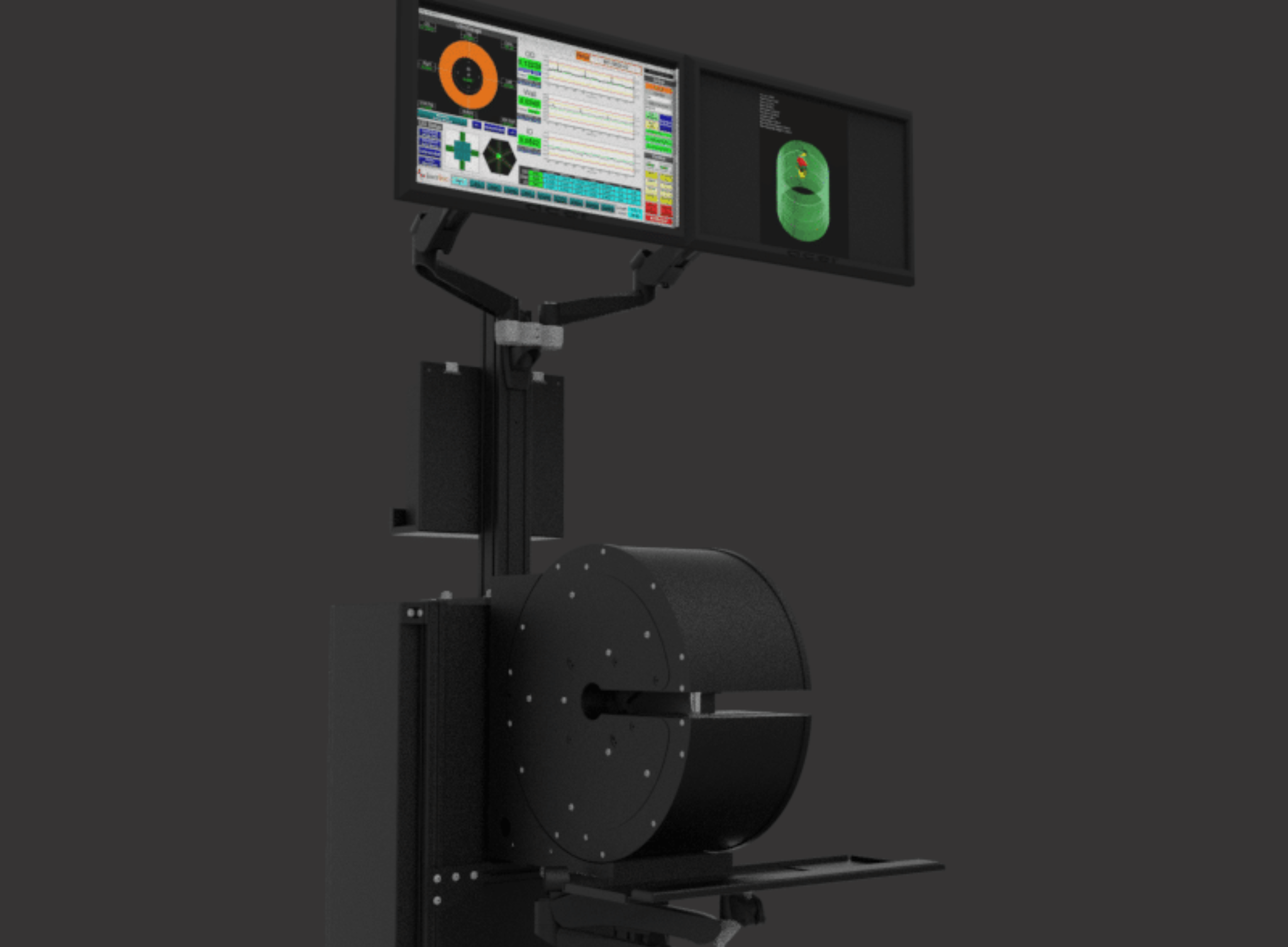

On-line Modular Solution

This bolt-to-the-floor system provides a secure and stable foundation for long-term dedicated use.

LaserLinc’s FlawSense technology provides a 3D measurement and defect detection solution using laser-line triangulation, unlike traditional 2D camera-based vision systems. It does not rely on colour or visual patterns but measures and analyses 360° of the surface contour in precise detail to detect and report defects at production speeds.

No Shape Error

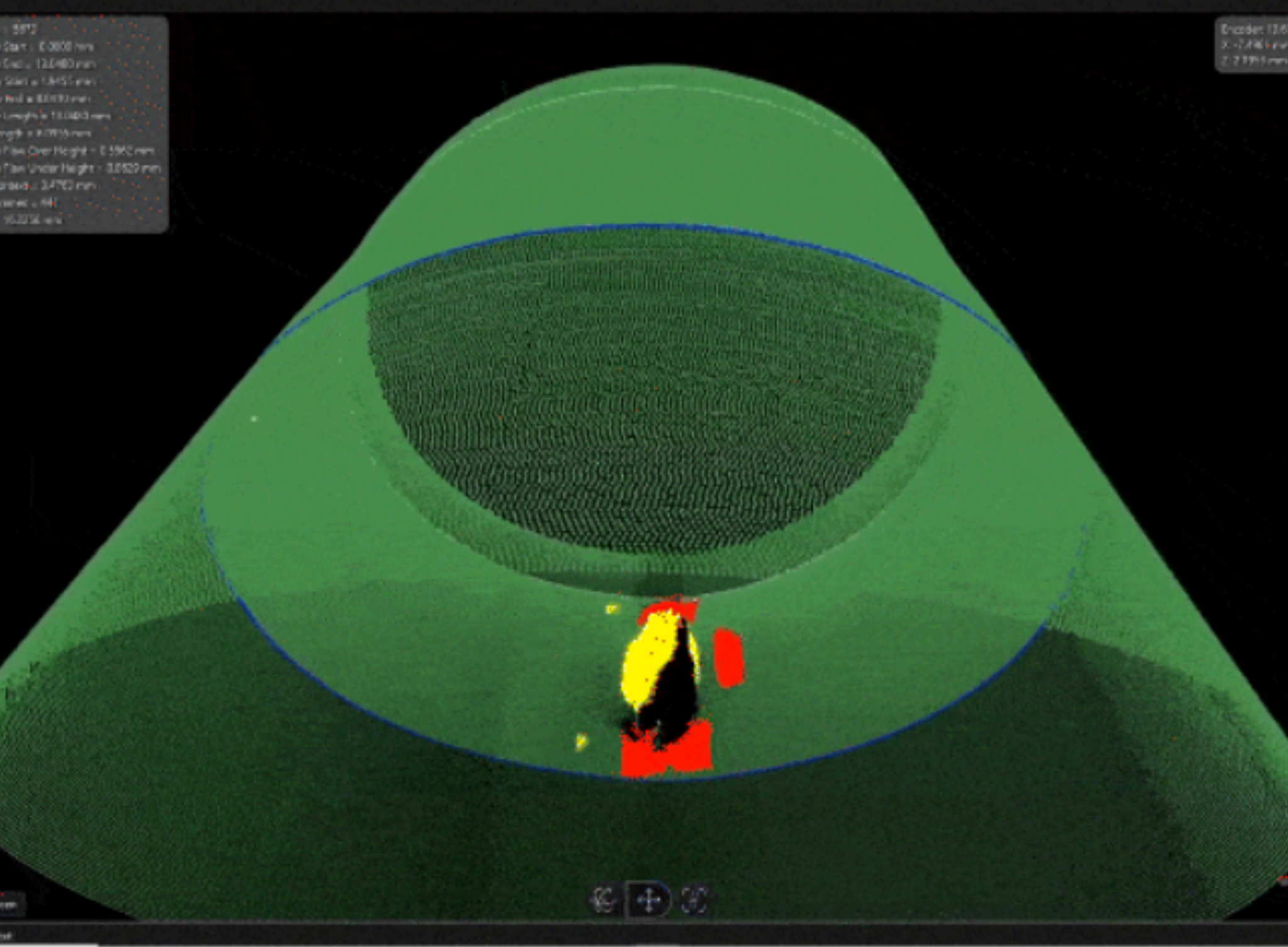

Products are rarely a perfect circle. Vision systems and micrometres can only measure point-to-point, measuring only six points around the circumference. FlawSense technology measures a full 360°c contour and digitises the product in real-time, creating thousands of points. This allows FlawSense technology to eliminate dead zones and measurement uncertainty.

Fast & Accurate

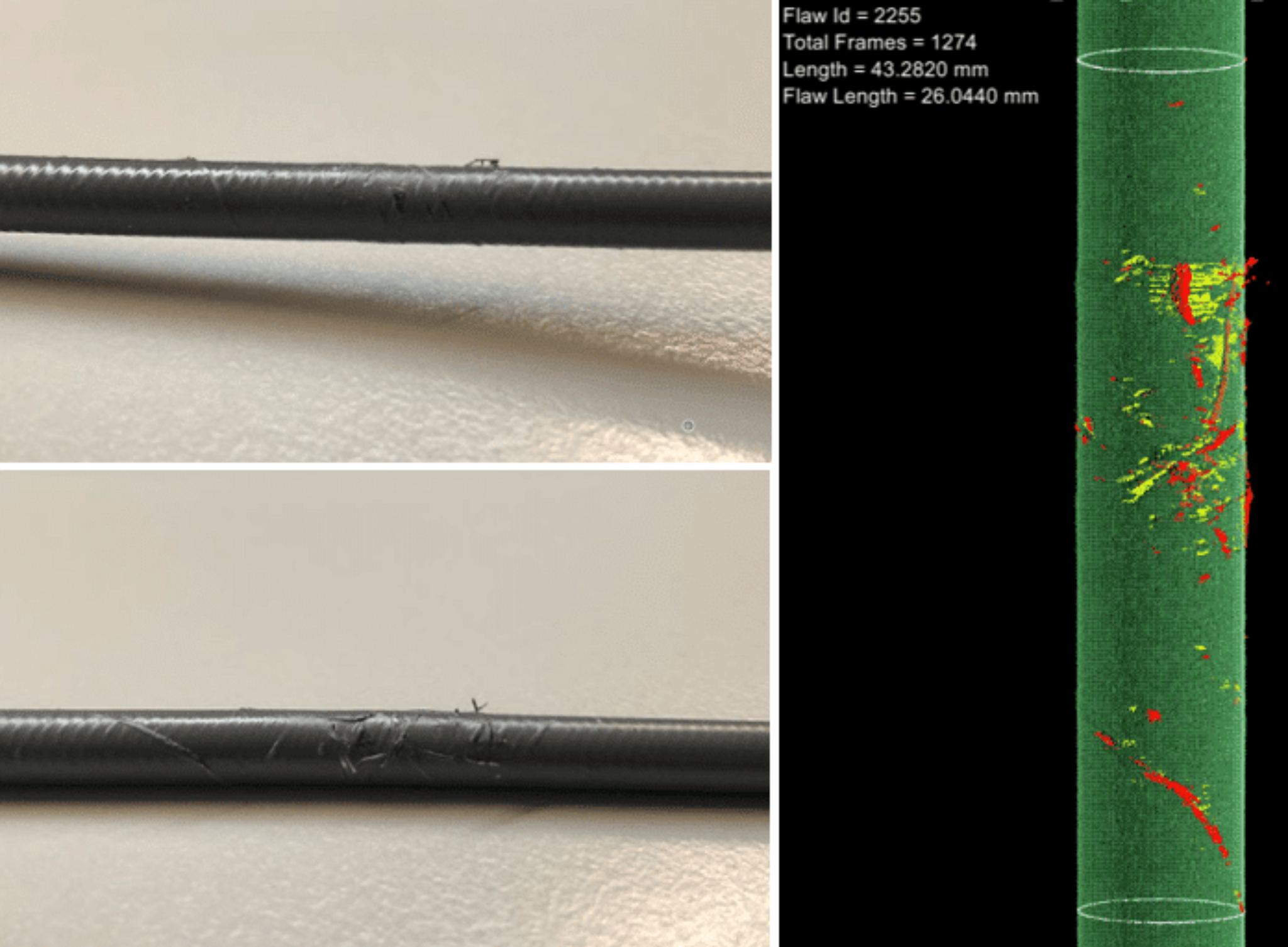

100% non-contact, real-time in-line and off-line inspection that detects defects as small as 5um (0.0002 in) and reliably detects 20-100x smaller defects than vision systems. It also picks up defects regardless of the colour of the text.

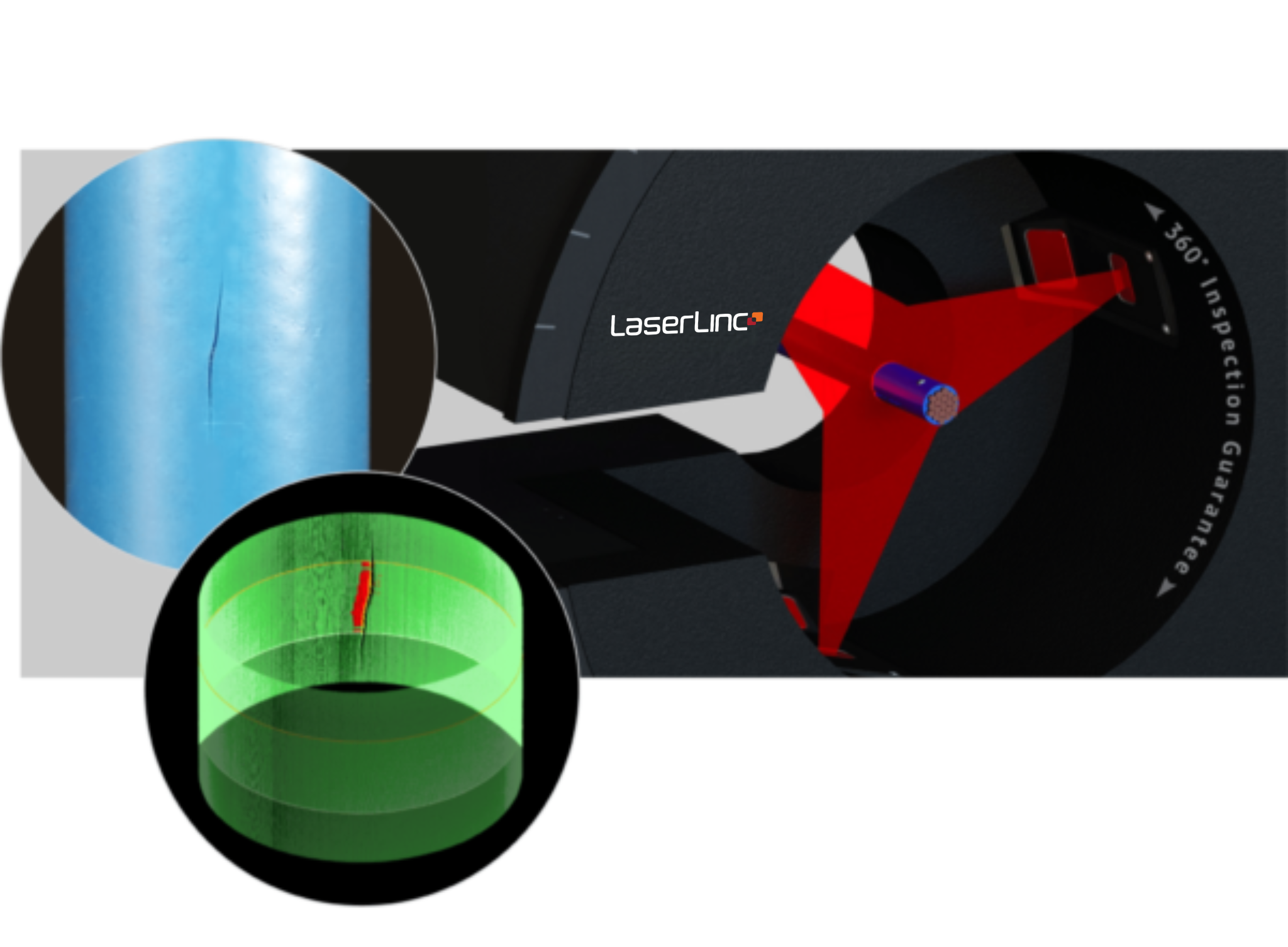

Laser-Line Triangulation

FlawSense uses laser-line triangulation technology for dimensional measurement and detection. This technology is superior to vision systems with its more limited coverage and camera-based inspection, which cannot offer the same level of coverage as FlawSense systems.
