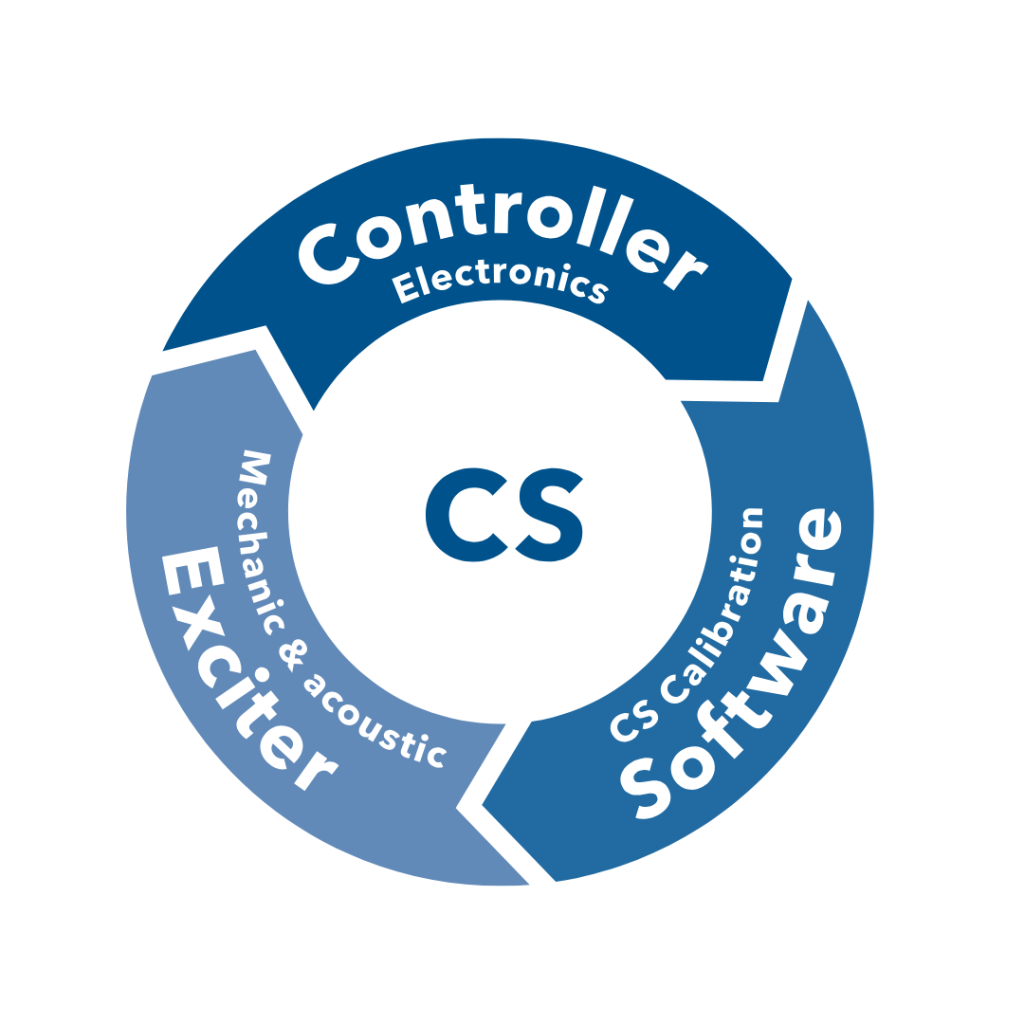

CS18 System Concepts

SPEKTRA’s CS Calibration system offers a comprehensive solution to address the demands of traceable calibration and efficient laboratory operations, all while adhering to applicable standards. This system is built on SPEKTRA’s own research and development, ensuring that it provides all the necessary components for effective calibration processes. By integrating cutting-edge technology and industry expertise, the CS Calibration system enables laboratories to maintain accuracy, compliance, and productivity in their calibration tasks.

Why is calibration a must?

  • Taking precise measurements with well-known measurement uncertainty
  • Taking measurements the results of which are commensurable
  • Granting legal security as the results of the measurements taken can be traced to the respective national calibration standards

Calibration involves determining the values that a measuring instrument displays when it is exposed to a precisely defined stimulus. If someone intends to take measurements, it is crucial for them to fully understand the characteristics of their measuring instrument and ensure that their results can be compared with those obtained by third parties.

To achieve measurement results that can be universally compared, instruments must be traceable to a national standard. This traceability is upheld by a calibration hierarchy. Therefore, anyone seeking accurate and comparable measurements should have their measuring instruments calibrated at regular intervals by an accredited calibration laboratory or perform the calibration themselves using a traceable calibration system.

Mechanical & Acoustical Excitation

Robust exciter, well proven in practice, with a wide working range which more often than not extends to the physical boundaries.

SRS 35 – Controller

Electronic measurement and vibration control unit in modular structure, ready for expansion with a variety of analogue and digital interfaces

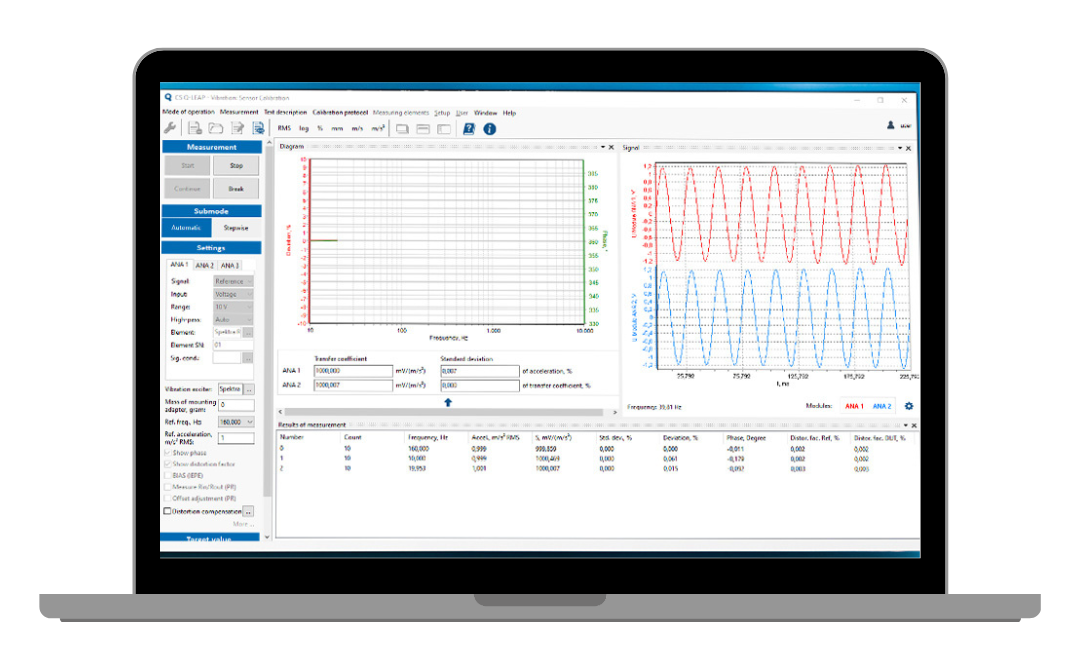

CS18 Calibration Software

Developed in conjunction with SPEKTRA’s own calibration laboratory and optimised with regard to high efficiency.

Your Benefits

With the CS18 Calibration system, SPEKTRA provides a means to cope with all requirements of traceable calibration and efficient laboratory operation in conformance with all applicable standards.

  • Complete turn-key calibration system
  • Including: Initial tracing to standard by traceable calibration of each supplied system in the SPEKTRA DAkkS Laboratory
  • Modular structure allows calibration with respect to several measurands by means of one system (acceleration, sound pressure, dynamic pressure, …)
  • Hardware interfaces for the calibration of sensors with digital interfaces (DTI, I2C, CAN,…)
  • Software interfaces for data exchange with instrumentation databases, ERP systems, …
  • Systems are available for primary as well as secondary calibration
